35mm x 30mm Alnico Pot
Product Details
- Product Code: POT834
- Max Breakaway Force: 14 Kgs
- Coating/Casing: Uncoated
- Direction of Magnetism: Through Thickness
- Magnet Type: Alnico
- Magnet Grade: Alnico 5
- Max Magnet Temperature: 540°C
Product Dimensions
- Diameter: 35 mm
- Thickness: 30 mm
- Hole Thread: M6
$48.40 (Inc GST)
Quantity discounts
| 1-9 | 10-99 | 100+ |
| $48.40 | $41.14 | $36.30 |

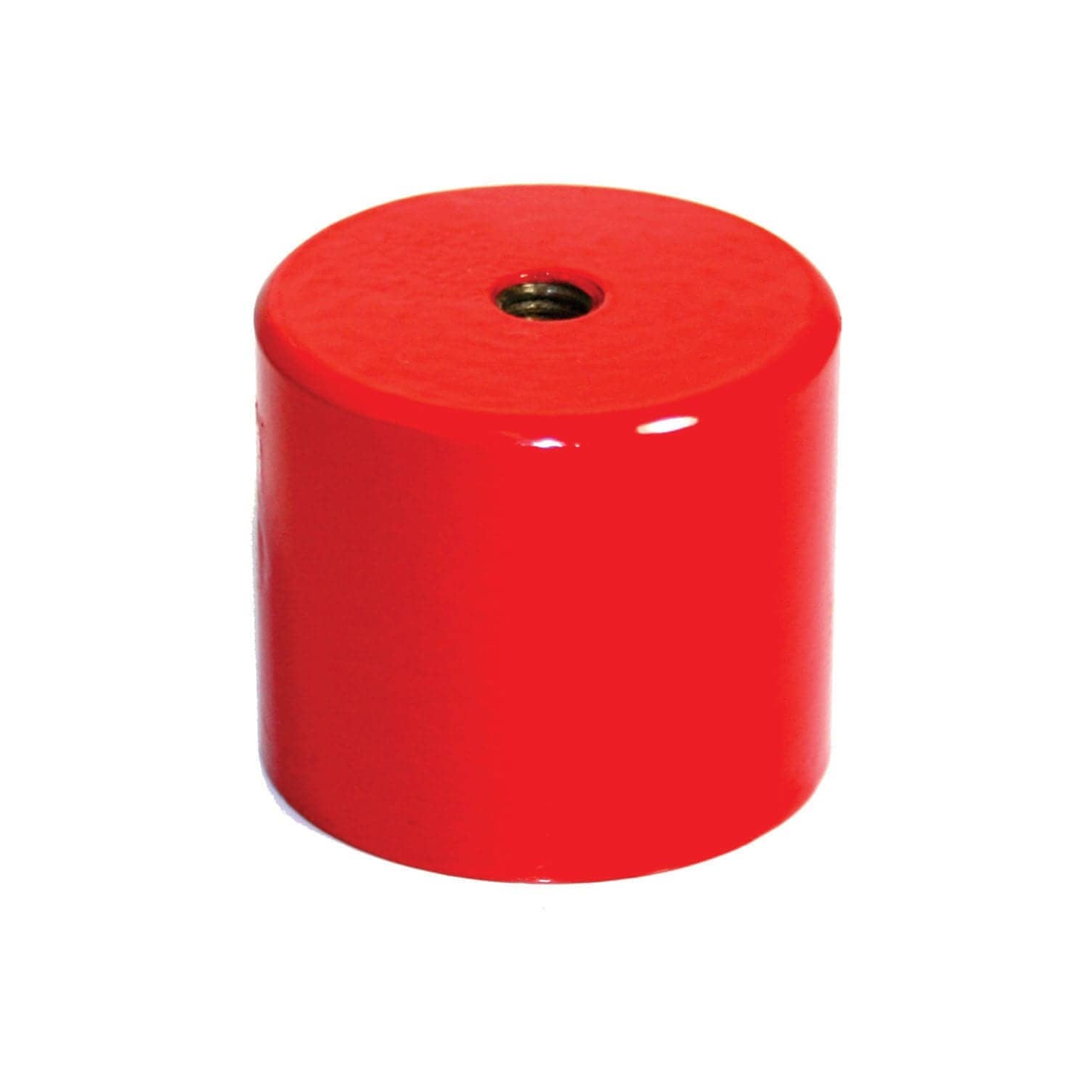

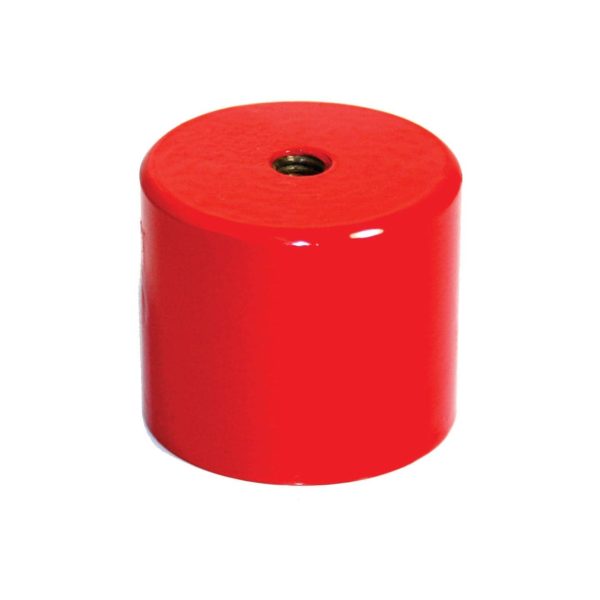

Our 35mm x 30mm Alnico Pot has an outside diameter of 35mm, a thickness of 30mm and has an internally threaded M6 hole. This holding magnet has a pull force of 14 kilograms before releasing. (on a 10mm mild steel plate)
Ask us about our 35mm x 30mm Alnico Pot using our stock code POT834 to see what else it can do for you.
Uses for our 35mm x 30mm Alnico Pot:
Use our alnico pot magnets in areas that are under extreme heat as these magnets have a very high temperature tolerance such as in powder coating applications or use them in sensors for measuring the path of positively charged Ions within a chamber to determine their mass, and their composition.
Our Alnico pots are the ultimate high temperature pot magnet!
For a list of all our sizes with internal threads, see the below table.
Standard Pots
| Outer Diameter | Thickness | Hole Thread | Breakaway Force |
|---|---|---|---|
| 12.7 mm | 15.9 mm | M6 | 2 Kgs |
| 20.5 mm | 19 mm | M6 | 4 Kgs |
| 27 mm | 25 mm | M6 | 6 Kgs |
| 35 mm | 30 mm | M6 | 14 Kgs |
Shallow Pots
| Outer Diameter | Thickness | Hole Thread | Breakaway Force |
|---|---|---|---|
| 19 mm | 8 mm | M4 | 3 Kgs |
| 28.5 mm | 9 mm | M4 | 5 Kgs |
| 38 mm | 10.5 mm | M6 | 13 Kgs |
