FB1001007
poster image

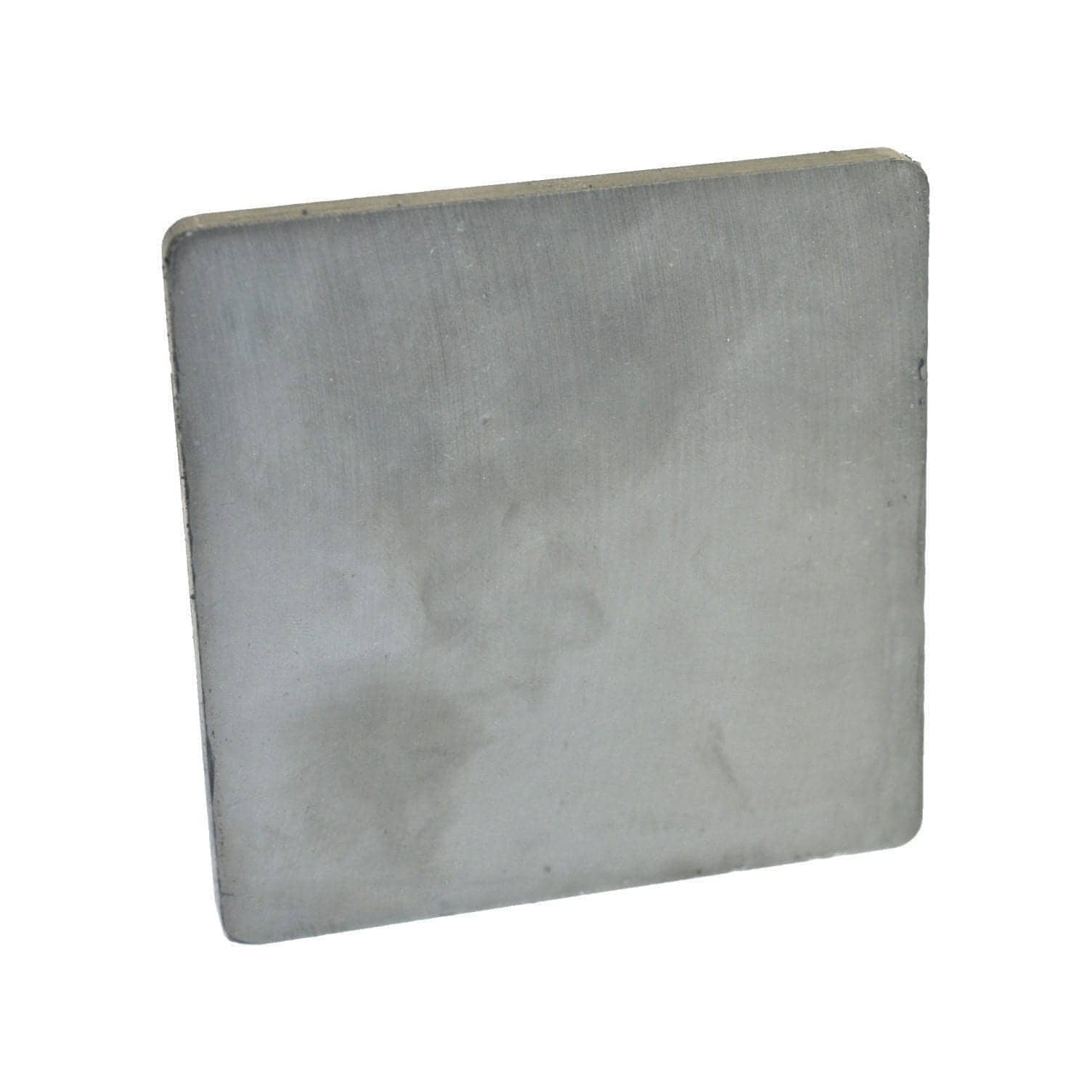

100mm x 100mm x 7mm Ceramic Block

Product Details

  • Product Code: FB1001007
  • Max Breakaway Force: 16.7 Kgs
  • Coating/Casing: Uncoated
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Ceramic (Ferrite)
  • Magnet Grade: Y30
  • Max Magnet Temperature: 250°C

Product Dimensions

  • Length: 100 mm
  • Width: 100 mm
  • Thickness: 7 mm
Excl. GST Incl. GST

$26.62 Incl. GST

Our 100mm x 100mm x 7mm Ceramic block has a length of 100mm, a width of 100mm and is 7mm thick. It is un-coated being a Y30 grade and is axially magnetised (Through the thickness).
This block has a holding force of 16.7 Kgs before releasing. (on a 10mm mild steel plate)

Ask us about our 100mm x 100mm x 7mm Ceramic Block using our stock code FB1001007 to see what else it can do for you.

Uses for our 100mm x 100mm x 7mm Ceramic Block:

Large Ceramic Blocks or Ferrite Blocks are primarily used in food grade separation systems such as overhead plate magnets and even magnetic sweepers to collect screws and nails in carparks. They are also highly corrosive resistant and have a high temperature tolerance before demagnetising, unlike standard Neodymium.

Ceramic blocks offer a very large pull force at a lower price point compared to Neodymium making them a viable alternative for any business needing a strong magnet for industrial purposes.

As the magnet is uncoated they can be prone to chipping and breaking if they are dropped or come into contact with force.
