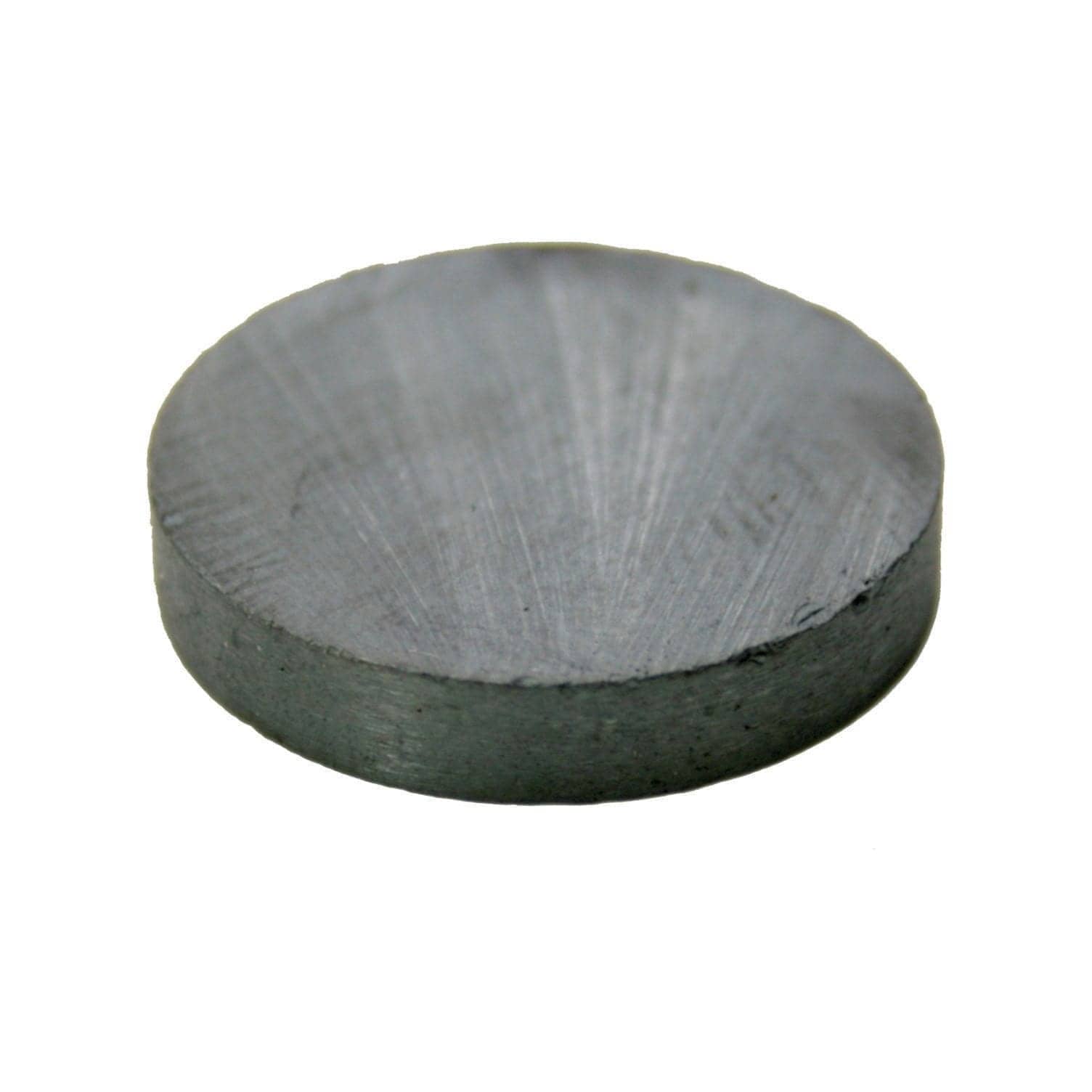

21.5mm x 4mm Ceramic Disc
Product Details
- Product Code: FD2154
- Max Breakaway Force: 0.39 Kgs
- Coating/Casing: Uncoated
- Direction of Magnetism: Through Thickness
- Magnet Type: Ceramic (Ferrite)
- Magnet Grade: Y30
- Max Magnet Temperature: 250°C
Product Dimensions
- Diametre: 21.5 mm
- Thickness: 4 mm
$0.85 Incl. GST
1-998 | 999-9999 | 10000+ |
$0.85 | $0.68 | $0.60 |
Our 21.5mm x 4mm Ceramic Disc has a diameter of 21.5mm and a thickness of 4mm. It is un-coated being a Y30 grade and is axially magnetised (Through the thickness).
This disc has a holding force of 0.39 Kgs before releasing. (on a 10mm mild steel plate)
Ask us about our 21.5mm x 4mm Ceramic Disc using our stock code FD2154 to see what else it can do for you.
Uses for our 21.5mm x 4mm Ceramic Disc:
Smaller Ceramic Discs or Ferrite Discs are extremely cost efficient and versatile being able to be used in the education sector to demonstrate how a magnet works in a safe manner due to their weaker magnetic field making them safer for handling compared to Neodymium magnet. Use them around the office or home to hold items on the fridge to keep important reminders in eyes view.
These are also used in sensor equipment where a strong magnetic field is not required such as door security sensors where the magnet closes a circuit when the door is closed or in the case of a gate where it can tell the system when the gate is fully open or closed.
They are also highly corrosive resistant so they are rust resistant and have a high temperature tolerance before demagnetising, unlike standard Neodymium making them an ideal choice for weathered environments.
As the magnet is uncoated they can be prone to chipping and breaking if they are dropped or come into contact with force. We would not recommend using these as a gate magnet as they are likely to break if hit with force.
Instead we recommend a Ceramic Pot or for more strength, a Neodymium Pot Magnet.
- Download: Ceramic MSDS
*Guarantee Terms: Our 10 Year Guarantee covers magnetism of all Neodymium products when kept in good condition. Guarantee does not cover rust or damage caused by mishandling or improper care. Click here for a full list of terms and conditions
