16mm Neodymium Pot and Keeper Kit

Product Details

  • Product Code: CAPN16COMBOX2
  • Max Breakaway Force: 3 Kgs
  • Coating/Casing: Nickel
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Neodymium
  • Magnet Grade: N45
  • Max Magnet Temperature: 80°C

Product Dimensions

  • Diametre: 16 mm
  • Thickness: 5 mm
  • Hole Diametre: 3.5 mm
  • Keeper Diameter: 15 mm
  • Keeper Hole Diameter: 3.8 mm
  • Keeper Thickness: 2 mm
Excl. GST Incl. GST

$16.54 Incl. GST

Quantity discounts
1-9 10-99 100+
$16.54 $13.23 $9.92

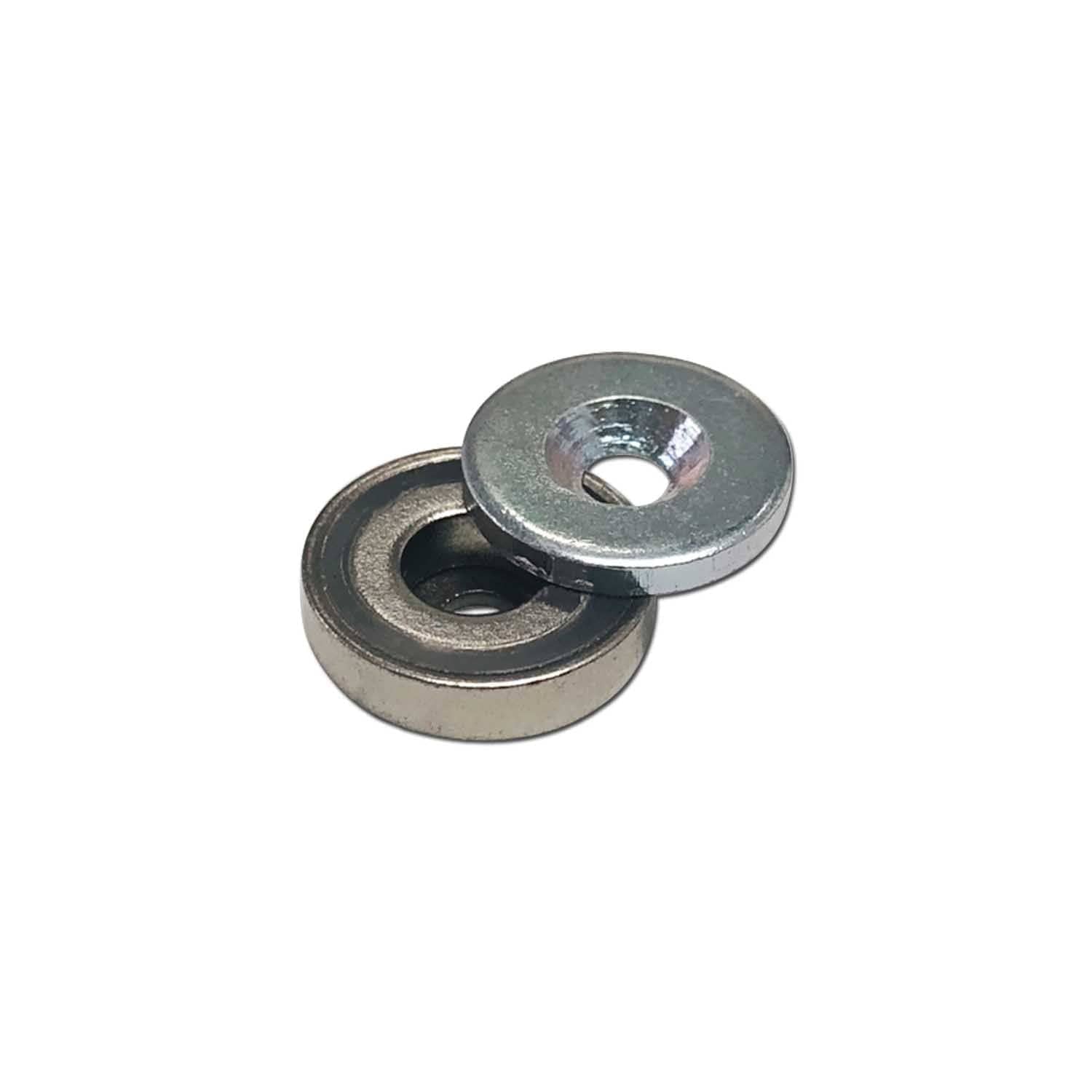

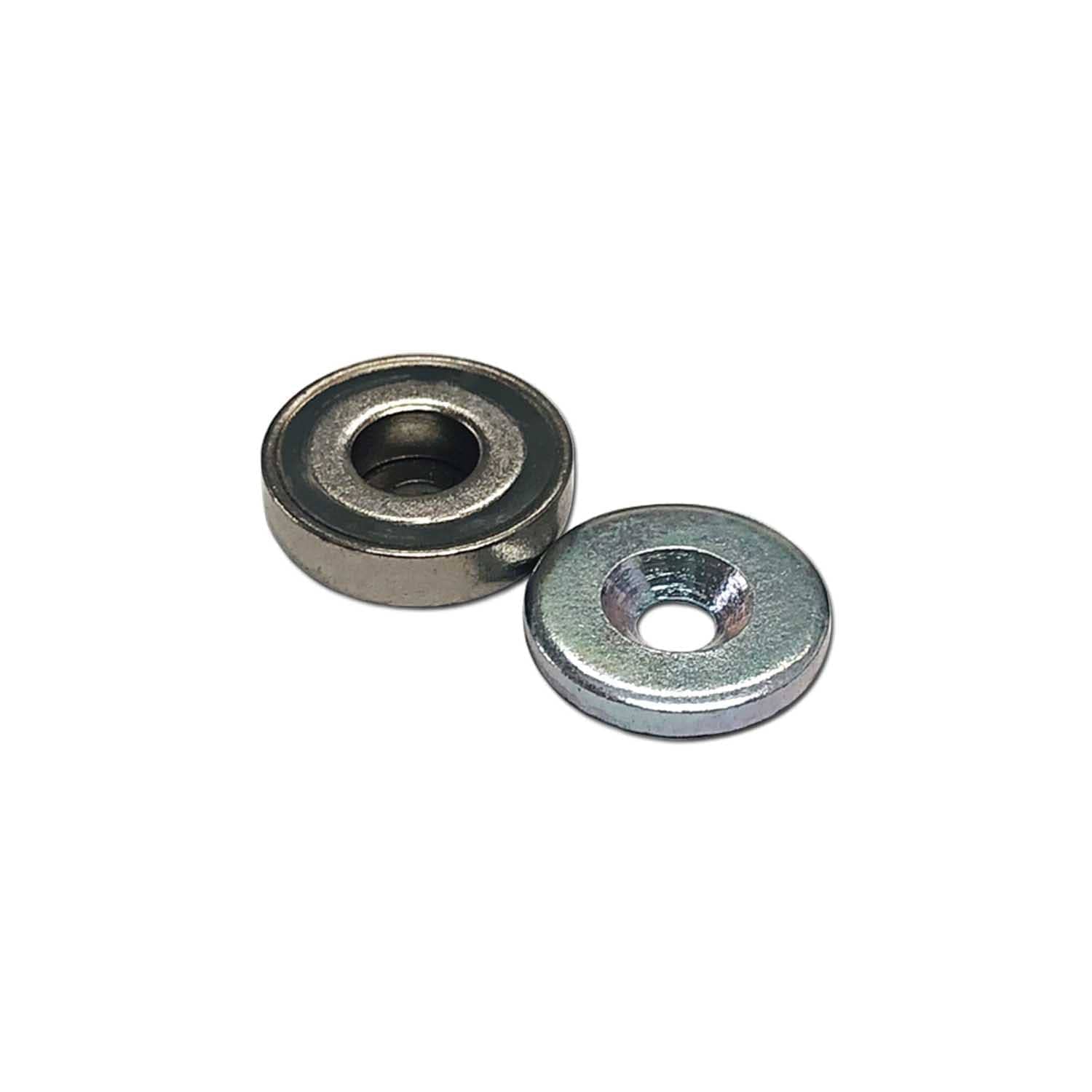

Our 16mm x 5mm Neodymium pot has an outside diameter of 16mm, a thickness of 5mm, a 3.5mm hole and has a holding force of 3 kilograms before releasing. (on a 10mm mild steel plate).
This kit comes with:

  • Two 16mm Pot Magnets
  • Two 15mm steel keepers
  • Two Stainless Steel self tapping screws (6G x 1″)
  • Two Stainless Steel Bolts and Nyloc Nuts (M3 x 25mm)



Ask us about our 16mm x 5mm Neodymium Pot and Keeper using our stock code CAPN16COMBOX2 to see what else it can do for you.

Uses for our 16mm Neodymium Pot and Keeper:

Our Pot Magnet and Steel Keeper combos combine a super strong Neodymium Pot Magnet with a Steel Keeper to easily create closures such as gate or latch magnets in the garden or even in the kitchen cupboard.
For added protection outdoors, spray the magnet and keeper with rust protection to ensure it lasts rain or shine

Unlike our blocks, disc or rings these pot magnets wont chip or break as easy as the steel channel acts to not only make a stronger single sided magnetic field, but also acts to protect the magnet from physical damage. If you are wanting to use these on a more sensitive surface such as on car paint we recommend using our rubber caps for added protection.
This will cause a reduction in magnetism by introducing an airgap between the magnet and the surface being attracted to so you may need a larger magnet or additional magnets to compensate for this reduction in pull force.

For our other sizes, please see below.

*Guarantee Terms: Our 10 Year Guarantee covers magnetism of all Neodymium products when kept in good condition. Guarantee does not cover rust or damage caused by mishandling or improper care. Click here for a full list of terms and conditions
