14mm x 5mm x 2.5mm Ceramic Ring
Product Details
- Product Code: FR14525
- Max Breakaway Force: 0.85 Kgs
- Coating/Casing: Uncoated
- Direction of Magnetism: Through Thickness
- Magnet Type: Ceramic (Ferrite)
- Magnet Grade: Y30
- Max Magnet Temperature: 250°C
Product Dimensions
- Diameter: 14 mm
- Thickness: 2 mm
- Hole Diameter: 5 mm
$1.21
Quantity discounts
| 1-99 | 100-999 | 1000+ |
| $1.21 | $0.97 | $0.79 |

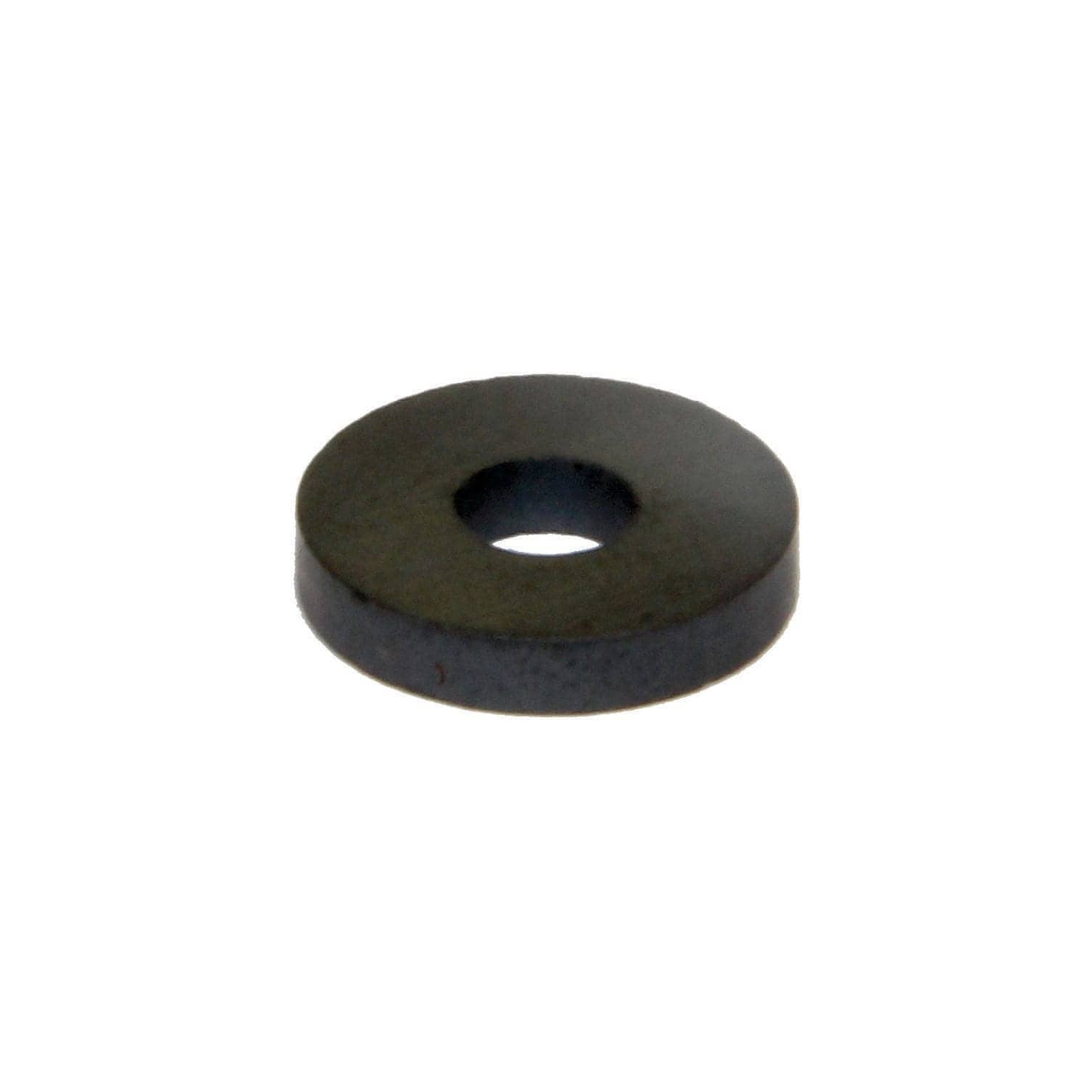

Our 14mm x 5mm x 2.5mm Ceramic Ring has a diameter of 14mm, a hole diameter of 5mm and a thickness of 2.5mm. It is un-coated being a Y30 grade and is axially magnetised (Through the thickness).
This ring has a holding force of 0.85 Kgs before releasing. (on a 10mm mild steel plate)
Ask us about our 14mm x 5mm x 2.5mm Ceramic Ring using our stock code FR14525 to see what else it can do for you.
Uses for our 14mm x 5mm x 2.5mm Ceramic Ring:
Ceramic Rings or Ferrite Rings are used in a variety of applications ranging from audio speakers, Magnetic Resonance Imaging (MRI) equipment in hospitals to even screwdrivers. A Ceramic ring also provides a low-cost option for school projects and the creation of fishing magnet projects to demonstrate the attraction of a magnet to a ferrous object.
Larger Ceramic Rings are also used in the food industry as a magnetic separator around pipework’s to extract ferrous contaminants.
By adding a steel surround like our Ceramic pot range, these rings can be used as holding magnets for construction purposes as the steel surround changes the magnetic field to be a stronger single sided magnet and also protects the ring from chipping/breaking.
- Download: Ceramic MSDS">Ceramic MSDS
