FR603210
poster image

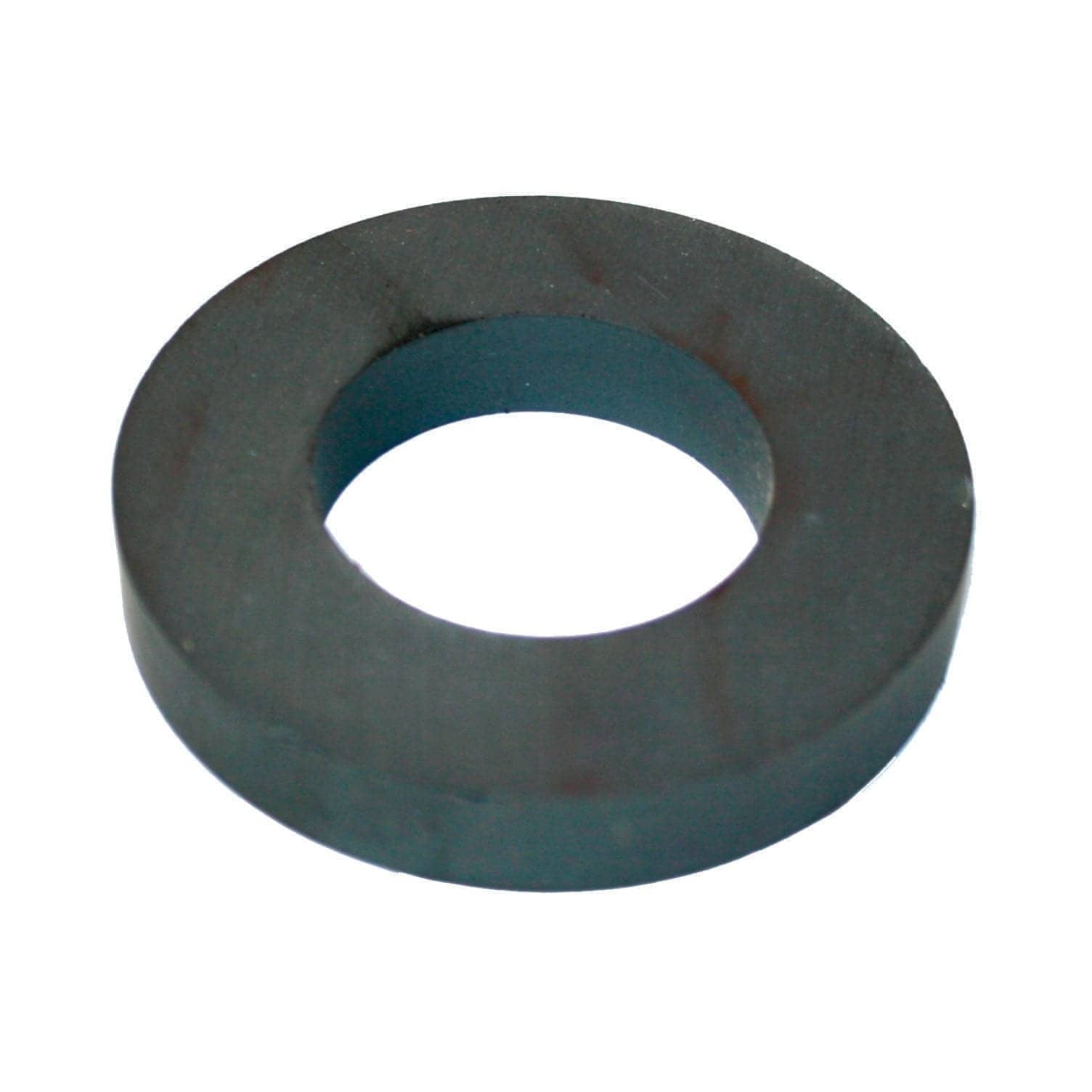

60mm x 32mm x 10mm Ceramic Ring

Product Details

  • Product Code: FR603210
  • Max Breakaway Force: 5.18 Kgs
  • Coating/Casing: Uncoated
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Ceramic (Ferrite)
  • Magnet Grade: Y30
  • Max Magnet Temperature: 250°C

Product Dimensions

  • Diametre: 60 mm
  • Thickness: 10 mm
  • Hole Diametre: 32 mm
Excl. GST Incl. GST

$9.08 Incl. GST

Quantity discounts
1-99 100-999 1000+
$9.08 $7.26 $5.90

Our 60mm x 32mm x 10mm Ceramic Ring has a diameter of 60mm, a hole diameter of 32mm and a thickness of 10mm. It is un-coated being a Y30 grade and is axially magnetised (Through the thickness).
This ring has a holding force of 5.18 Kgs before releasing. (on a 10mm mild steel plate)

Ask us about our 60mm x 32mm x 10mm Ceramic Ring using our stock code FR603210 to see what else it can do for you.

Uses for our 60mm x 32mm x 10mm Ceramic Ring:

Ceramic Rings or Ferrite Rings are used in a variety of applications ranging from audio speakers, Magnetic Resonance Imaging (MRI) equipment in hospitals to even screwdrivers. A Ceramic ring also provides a low-cost option for school projects and the creation of fishing magnet projects to demonstrate the attraction of a magnet to a ferrous object.

Larger Ceramic Rings are also used in the food industry as a magnetic separator around pipework’s to extract ferrous contaminants.

By adding a steel surround like our Ceramic pot range, these rings can be used as holding magnets for construction purposes as the steel surround changes the magnetic field to be a stronger single sided magnet and also protects the ring from chipping/breaking.
