350mm x 40mm Stainless Steel End Plate Set & Bolts
Product Details
- Product Code: ENDPLATE350
- Coating/Casing: Stainless Steel
- Magnet Type: Non-Magnetic
- Fixings Included: 14 Bolts
Product Dimensions
- Length: 350 mm
- Width: 40 mm
- Thickness: 5 mm
- Hole Diameter: 9 mm
$130.00
Quantity discounts
| 1-4 | 5-9 | 10+ |
| $130.00 | $110.50 | $97.50 |

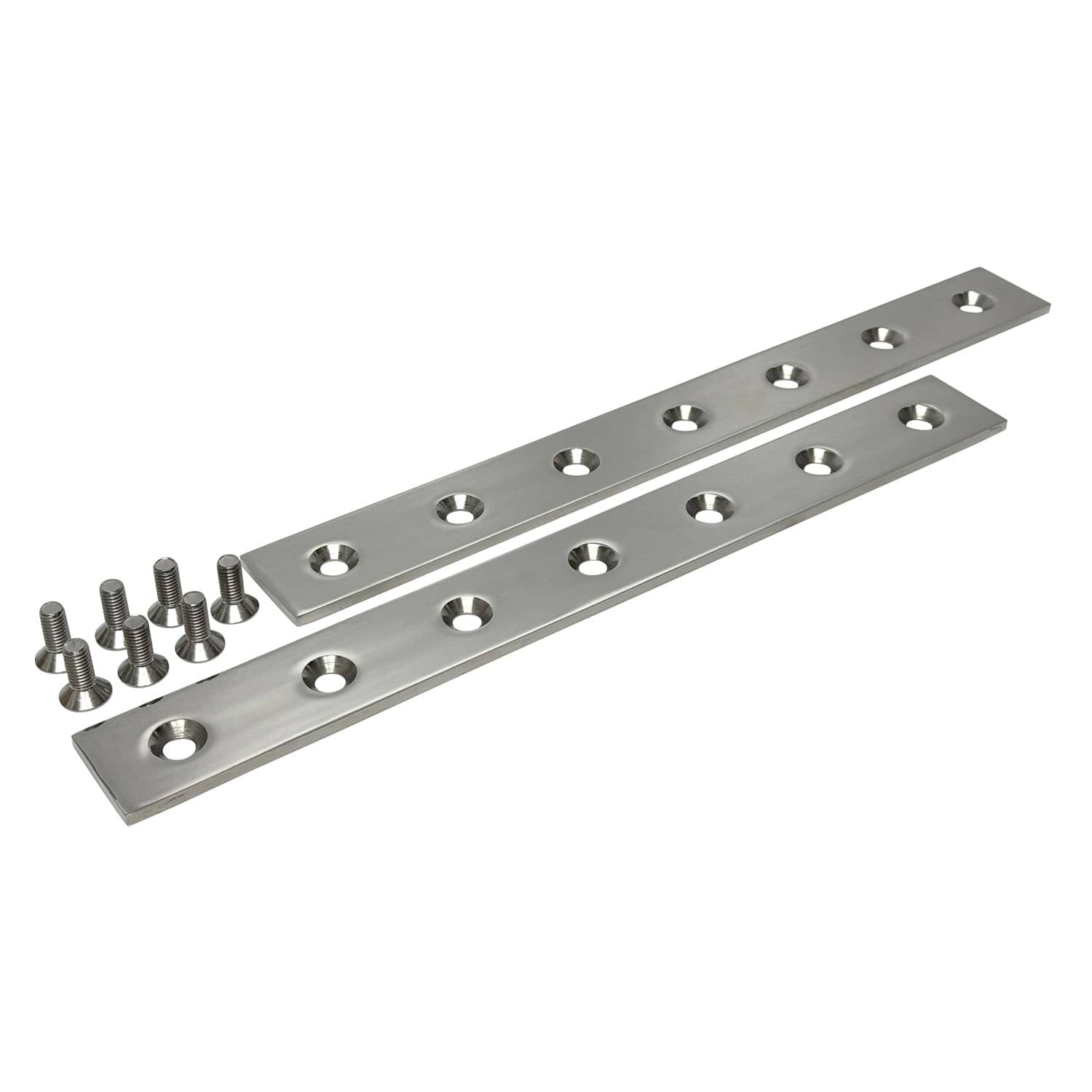

This set of rectangular stainless steel bar measures 350mm in length, 40mm in width, and 5mm in thickness.

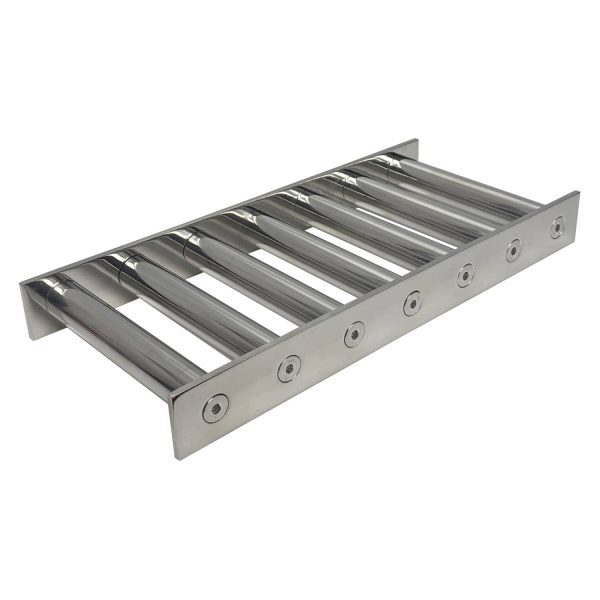

The package includes 2 countersunk stainless steel bars and 14 stainless steel fixing bolts, allowing you to assemble your own 7 rod magnetic grid using our high powered magnetic rods. (magnetic rods sold separately)
Customers can identify this stainless steel bar set with our stock code: ENDPLATE350
Uses for our Stainless Steel Bar Set:
These stainless steel bars are essential components for constructing Magnet Grids and Grates, commonly used in both small-scale and industrial processing plants. They play a crucial role in preventing contamination by ferrous materials during the production process. Magnetic Grids capture and remove metal swarf, wire, nails, and steel fasteners from raw or partially processed food materials as they pass through production lines.
The plates are designed to hold multiple stainless steel magnetic rods and come in a range of sizes to suit your needs. Positioned in chutes or other parts of the production line, these magnets ensure food flows freely while contaminants are trapped. The stainless steel bolts needed for assembly are included with your bars.
