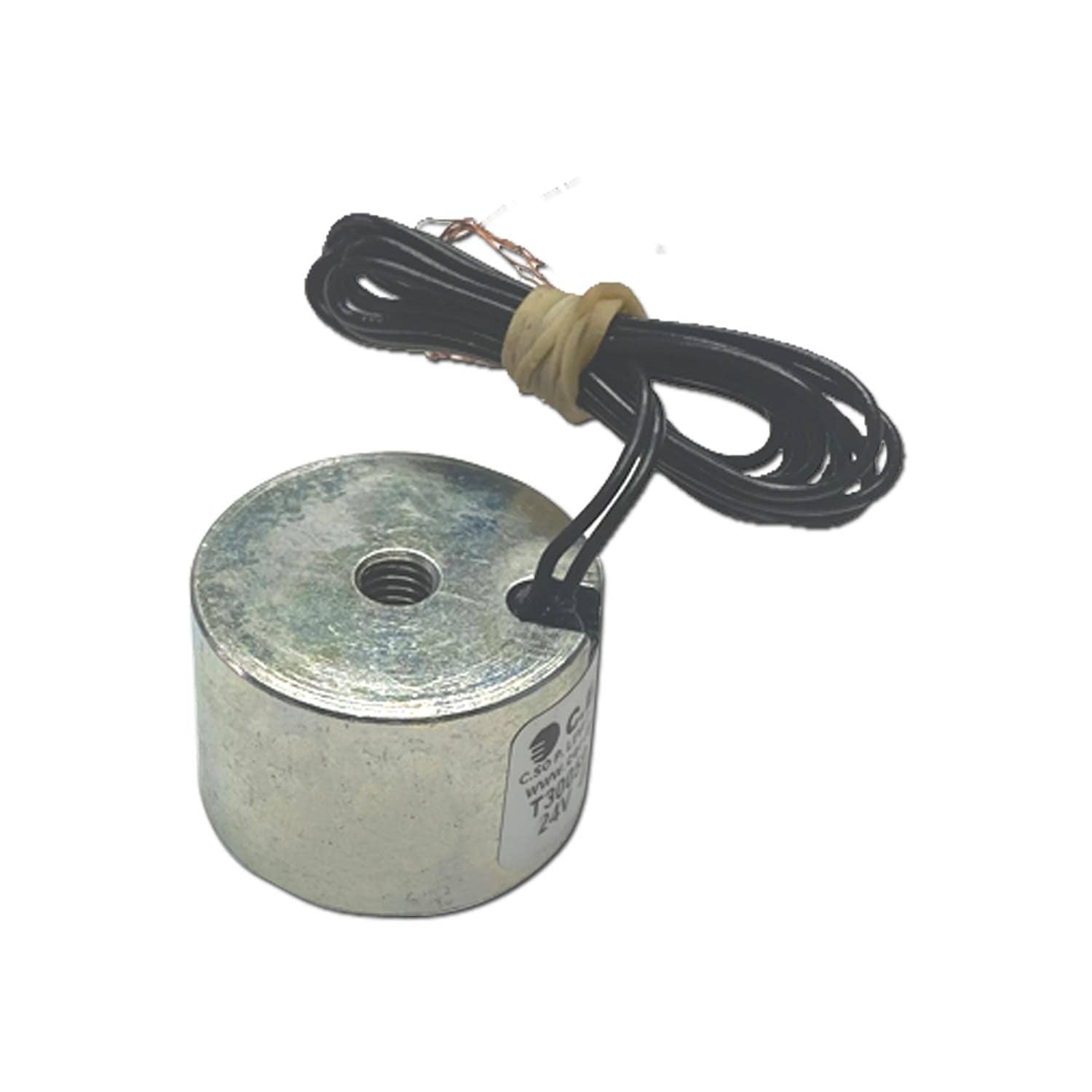

30mm x 20mm Premium Electromagnet

Product Details

  • Product Code: ELECTROMAGT30
  • Max Breakaway Force: 15 Kgs
  • Coating/Casing: Steel
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Electromagnet
  • Magnet Grade: N/A
  • Voltage: 24 VDC
  • Wattage: 4.0 W

Product Dimensions

  • Diametre: 30 mm
  • Thickness: 20 mm
  • Hole Thread: M6
Excl. GST Incl. GST

$249.65 Incl. GST

Quantity discounts
1-9 10-99 100+
$249.65 $224.69 $199.72

This electromagnet has a diameter of 30mm and a thickness of 20mm. It uses 24 VDC power with a wattage of 4.0 W. When powered this has a maximum pull force of 15 Kgs.
(Pull ratings are based on the maximum hold on low carbon steel at magnetic saturation with a 10mm thick plate.)

Ask us about our 30mm Electromagnet using our stock code ELECTROMAGT30 to see what else it can do for you.

Uses for our 30mm x 20mm Electromagnet:

Industries such as metal sorting facilities and even food production plants use electromagnets as a form of on/off magnet that allows easy removal of ferrous items for disposal or transport unlike a permanent magnet where it is not possible to turn off the magnetic field.
Even simple applications such as commercial door locks use electromagnets to control entry into secure buildings or open gates. Ideally these should only be used on a flat, smooth surface where the entire magnet face is in contact with a ferrous surface.

Unlike other suppliers, our electromagnets are Italian made from the best materials ensuring that they last the distance.

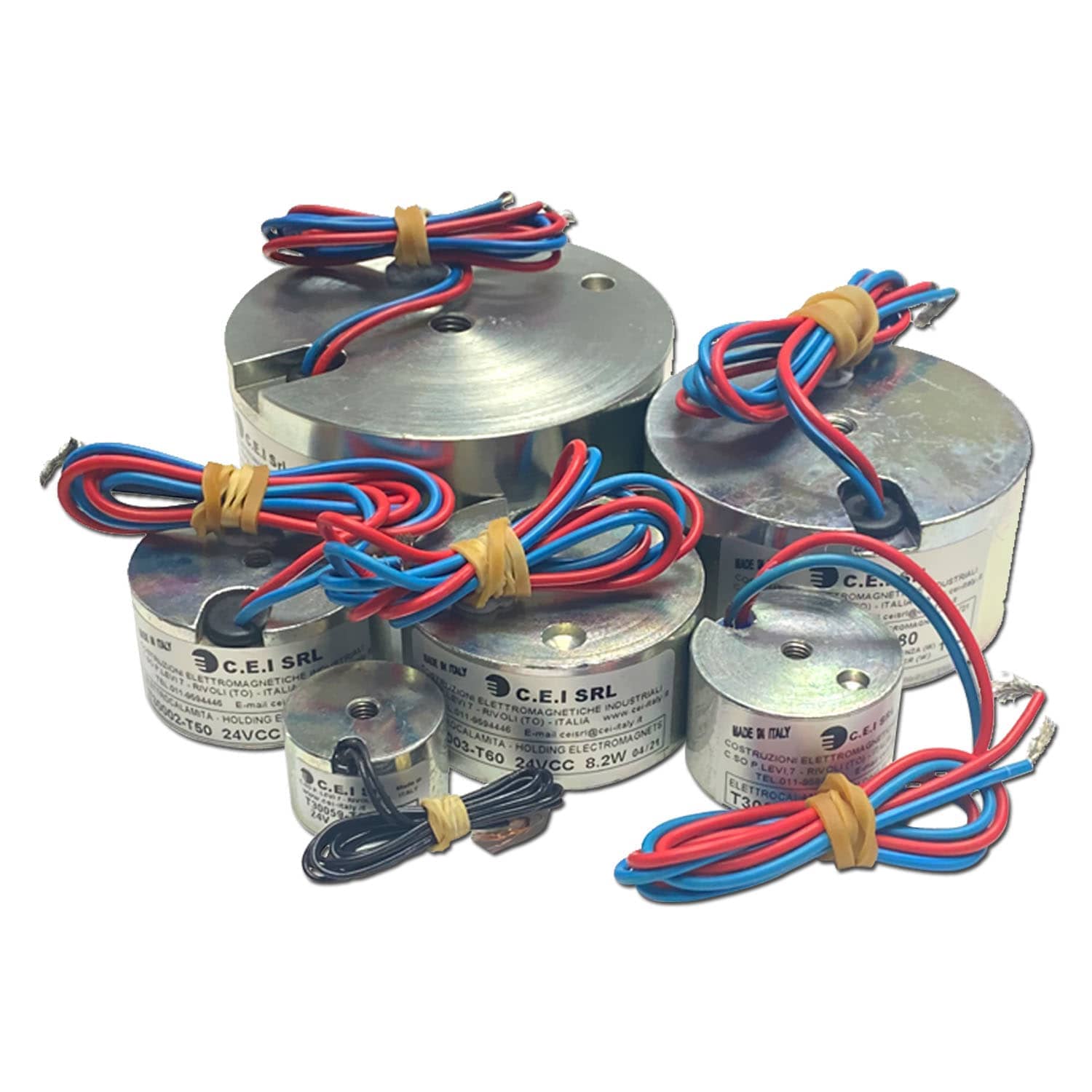

For a list of all our sizes, see the below table.

Overall Unit Dimensions Voltage | Wattage Breakaway Force
Diametre: 20mm
Thickness: 20mm
Hole Thread: M4		 24 VDC
4.5 W		 4 Kgs
Diametre: 30mm
Thickness: 20mm
Hole Thread: M6		 24 VDC
4.0 W		 15 Kgs
Diametre: 40mm
Thickness: 26mm
Hole Thread: M6		 24 VDC
4.6 W		 40 Kgs
Diametre: 50mm
Thickness: 28mm
Hole Thread: M6		 24 VDC
6.4 W		 70 Kgs
Diametre: 60mm
Thickness: 30mm
Hole Thread: M8		 24 VDC
8.2 W		 100 Kgs
Diametre: 80mm
Thickness: 40mm
Hole Thread: M8		 24 VDC
19.3 W		 240 Kgs
Diametre: 100mm
Thickness: 24mm
Hole Thread: M10		 24 VDC
23.8 W		 350 Kgs
