80mm x 40mm Premium Electromagnet

Product Details

  • Product Code: ELECTROMAGT80
  • Max Breakaway Force: 240 Kgs
  • Coating/Casing: Steel
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Electromagnet
  • Magnet Grade: N/A
  • Voltage: 24 VDC
  • Wattage: 19.3 W

Product Dimensions

  • Diametre: 80 mm
  • Thickness: 40 mm
  • Hole Thread: M8
Excl. GST Incl. GST

$534.00 Incl. GST

Quantity discounts
1-9 10-99 100+
$534.00 $480.60 $427.20

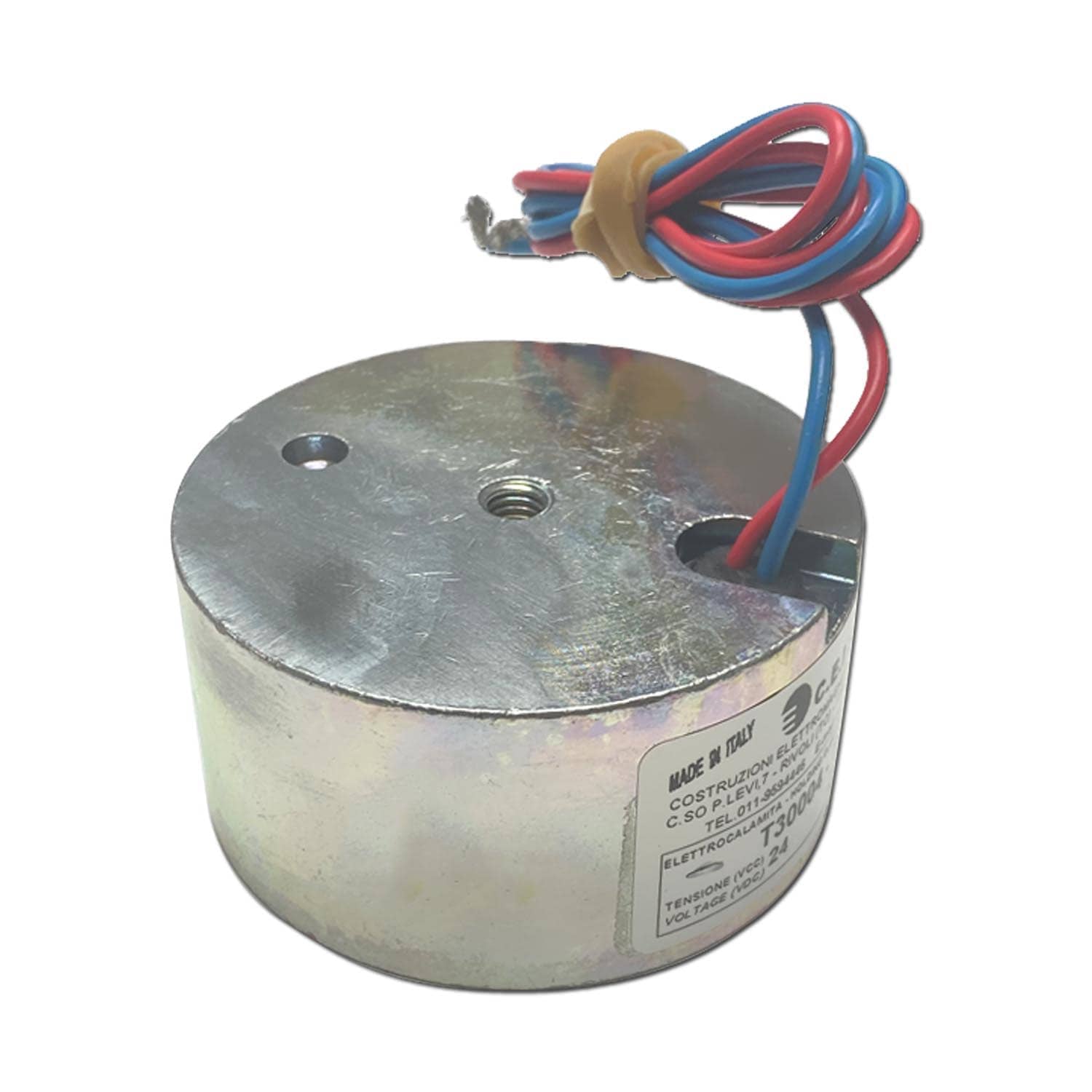

This electromagnet has a diameter of 80mm and a thickness of 40mm. It uses 24 VDC power with a wattage of 19.3 W. When powered this has a maximum pull force of 240 Kgs.
(Pull ratings are based on the maximum hold on low carbon steel at magnetic saturation with a 10mm thick plate.)

Ask us about our 80mm Electromagnet using our stock code ELECTROMAGT80 to see what else it can do for you.

Uses for our 80mm x 40mm Electromagnet:

Industries such as metal sorting facilities and even food production plants use electromagnets as a form of on/off magnet that allows easy removal of ferrous items for disposal or transport unlike a permanent magnet where it is not possible to turn off the magnetic field.
Even simple applications such as commercial door locks use electromagnets to control entry into secure buildings or open gates. Ideally these should only be used on a flat, smooth surface where the entire magnet face is in contact with a ferrous surface.

Unlike other suppliers, our electromagnets are Italian made from the best materials ensuring that they last the distance.

For a list of all our sizes, see the below table.

Overall Unit Dimensions Voltage | Wattage Breakaway Force
Diametre: 20mm
Thickness: 20mm
Hole Thread: M4
24 VDC
4.5 W
4 Kgs
Diametre: 30mm
Thickness: 20mm
Hole Thread: M6
24 VDC
4.0 W
15 Kgs
Diametre: 40mm
Thickness: 26mm
Hole Thread: M6
24 VDC
4.6 W
40 Kgs
Diametre: 50mm
Thickness: 28mm
Hole Thread: M6
24 VDC
6.4 W
70 Kgs
Diametre: 60mm
Thickness: 30mm
Hole Thread: M8
24 VDC
8.2 W
100 Kgs
Diametre: 80mm
Thickness: 40mm
Hole Thread: M8
24 VDC
19.3 W
240 Kgs
Diametre: 100mm
Thickness: 24mm
Hole Thread: M10
24 VDC
23.8 W
350 Kgs

*Guarantee Terms: Our 10 Year Guarantee covers magnetism of all Neodymium products when kept in good condition. Guarantee does not cover rust or damage caused by mishandling or improper care. Click here for a full list of terms and conditions
