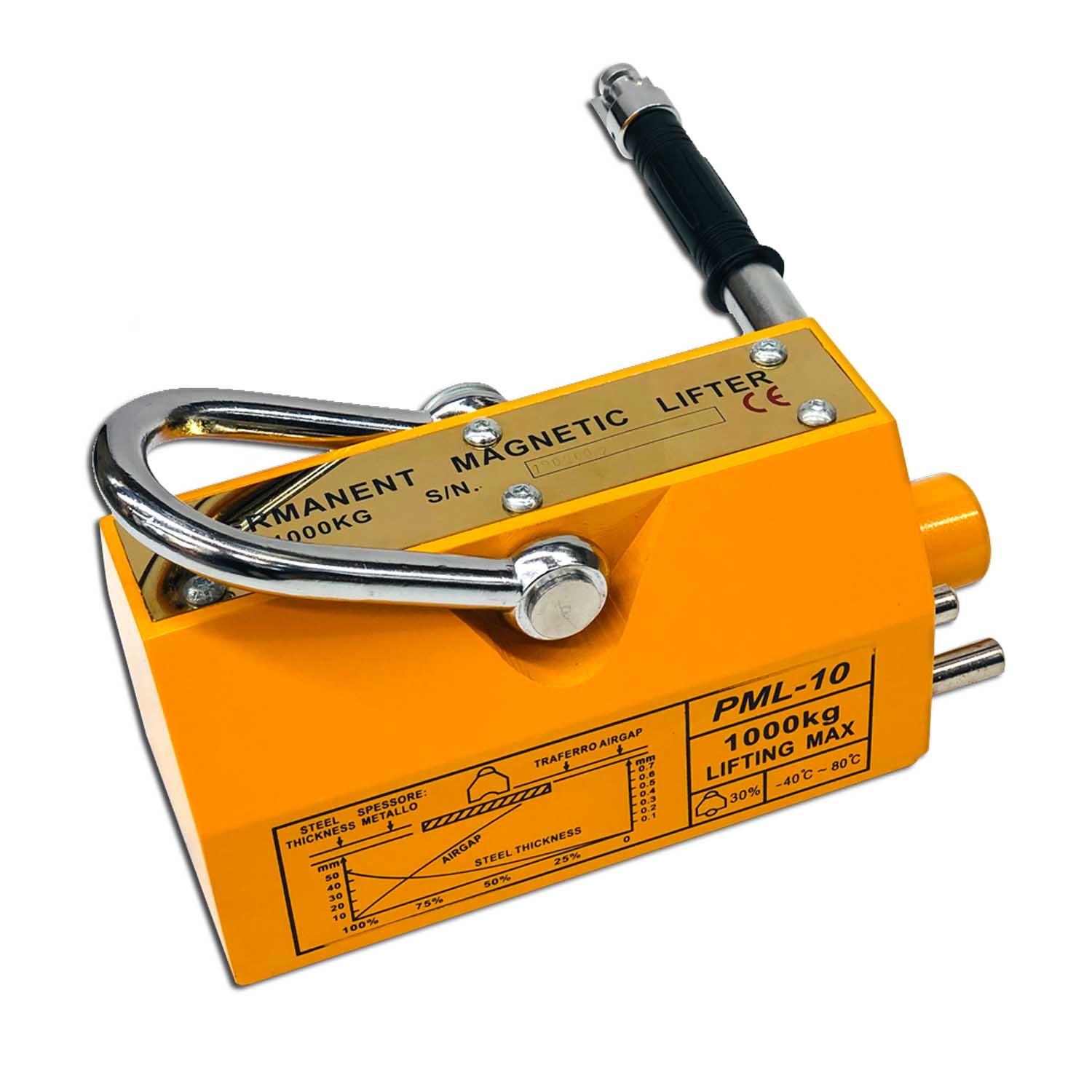

SL1000
SUPERLIFTER-A

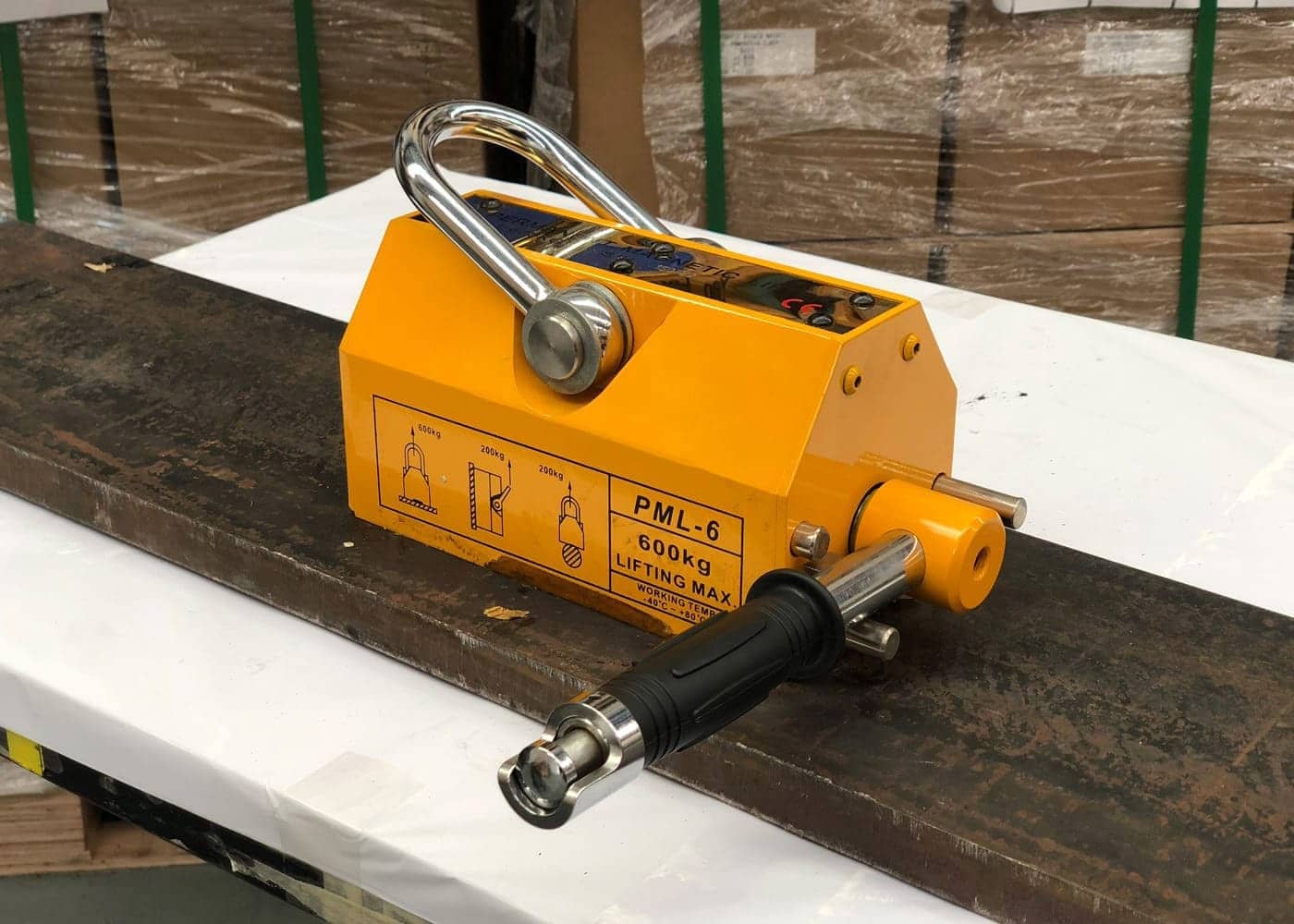

Superlifter-3
Superlifter-2
Superlifter-1
poster image

1000Kg Lifting Magnet (PML-10)

Product Details

  • Product Code: SL1000
  • Max Breakaway Force: 1000 Kgs
  • Coating/Casing: Steel
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Neodymium
  • Magnet Grade: N45
  • Max Magnet Temperature: 80°C
  • Cylindrical Lifting Capacity: 300 Kgs
  • Warranty Period: 10 Year Magnetism Guarantee

Product Dimensions

  • Length: 258 mm
  • Width: 176 mm
  • Thickness: 176 mm
Excl. GST Incl. GST

$1,452.00 Incl. GST

Quantity discounts
1-2 3-4 5+
$1,452.00 $1,234.20 $1,161.60

All our Magnetic SuperLifters come with a 10 year magnetism warranty

Should your unit demagnetise within the first 10 years of your purchase, simply return it to us for a replacement.
See our terms and conditions for full details.

Our 1000Kg Lifting Magnet has a length of 258mm, a width of 176mm and a height of 176mm. This Superlifter is made from a steel housing with a neodymium magnet that can be switched on and off by using the handle. push down when on a steel surface to lock the lifter on and push the button on the handle while lifting up to release.

This lifting magnet has a rated lifting force of 1000 Kgs and a cylindrical lifting force of 333 Kgs. These ratings are against a minimum of 60mm thick steel and have a 3:1 safety factor meaning that in reality they can lift three times their rated lifting capacity.
Do not intentionally overload beyond their safe lifting capacity.

Ask us about our 1000Kg Lifting Magnet using our stock code SL1000 / PML-10 to see what else it can do for you.

Uses for our 1000Kg Lifting Magnet:

Our Magnetic Lifters are a safe versatile way of moving steel plates around the factory no matter if they are blocks, flat steel plates or cylinders in a hands free environment to decrease injury risks to operators.
By using high grade Neodymium magnets, our Superlifters boast a high 3:1 safety factor allowing them to have a strong magnetic hold on any surface. Simply rotate the handle to the ON position to activate the magnetic field and have the lifter clamp down onto a ferrous object. When you want to release it, ensure the lifter is not under any load and push in the button on the handle to disengage the magnetic field. Move items around using the strong shackle on the unit which cam pivot 90 degrees to allow for vertical lifting.

These lifters are used in a wide range of industries such as sheet metal working or even general factory work to portable hydraulic cranes.
Being magnetically powered allows these magnets to operate in remote areas with no electricity allowing for an easy solution where power access can be problematic.

All of Magnets Australia’s Magnetic Lifters are compliant with the AS 4991-2004 safety standard which requires a tear-off force of at least 3 times rated capacity for permanent lifting magnets for safe operation.
Any magnetic lifters that do not meet at least a 3:1 Safety Factor, does not comply with the Australian/NZ Standard for the legal requirements of safe operation and therefore should not be used.

When lifting cylindrical objects be aware that the holding force is reduced to one third of the rated lifting capacity.
The same applies for lifting sheets/blocks vertically as the shear force that will be experienced by the magnet is only one third of the rated pull force, cylindrical objects will be a third of a third for shear force.

Always know the weight, and iron content of your load before lifting to ensure safe operation. See our downloads section for a operations manual including graphs to calculate lifting capacity.

For thinner plates we recommend the MagSwitch range of thin plate lifters which can be found here.

Please see below for a full list of our Superlifter range.

Model Safe Rated Capacity
At Minimum Thickness		 Capacity
100Kg
PML-1		 30 mm Plate: 100 Kgs
30 mm Plate Shear: 33 Kgs
Cylindrical: 33 Kgs		 300 Kgs
300Kg
PML-3		 40 mm Flat Plate: 300 Kgs
40 mm Plate Shear: 100 Kgs
Cylindrical: 100 Kgs		 900 Kgs
600Kg
PML-6		 50 mm Flat Plate: 600 Kgs
50 mm Plate Shear: 200 Kgs
Cylindrical: 200 Kgs		 1,800 Kgs
1000Kg
PML-10		 60 mm Flat Plate: 1,000 Kgs
60 mm Plate Shear: 333 Kgs
Cylindrical: 333 Kgs		 3,000 Kgs
2000Kg
PML-20		 70 mm Flat Plate: 2,000 Kgs
70 mm Plate Shear: 666 Kgs
Cylindrical: 666 Kgs		 6,000 Kgs
3000Kg
PML-30		 80 mm Flat Plate: 3,000 Kgs
80 mm Plate Shear: 1,000 Kgs
Cylindrical: 1,000 Kgs		 9,000 Kgs
6000Kg
PML-60		 100mm Flat Plate: 6,000 Kgs
100mm Plate Shear: 2,000 Kgs
Cylindrical: 2,000 Kgs		 18,000 Kgs
