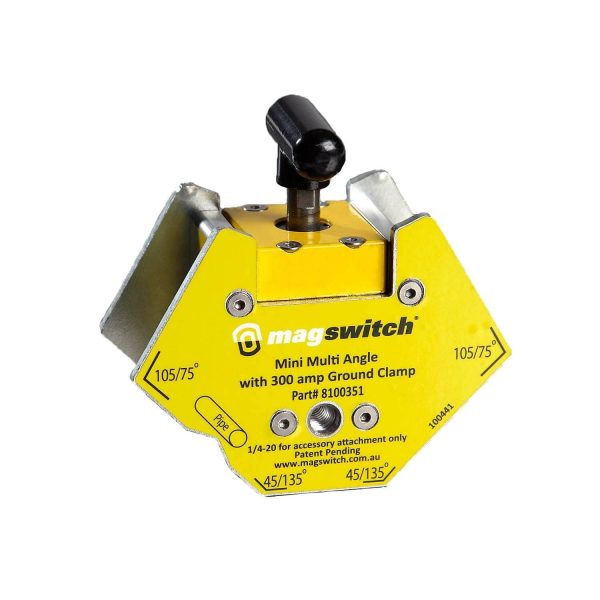

Mini Multi Angle | With 300 AMP

Product Details

  • Product Code: MSMULTIANGLE300
  • Max Breakaway Force: 67 Kgs
  • Coating/Casing: Steel
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Neodymium
  • Magnet Grade: N45
  • 2:1 Shear Working Load: 2.7 Kgs
  • Max Amp Load: 300A

Product Dimensions

  • Length: 91 mm
  • Width: 42 mm
  • Height: 87 mm
Excl. GST Incl. GST

$127.27 Incl. GST

Quantity discounts
1+
$127.27

The MagSwitch Multi Angle is a powerful, easy to use angle tool that is ready to tackle big and small jobs. Its small size and strong hold make it ideal for metal fabrication or artistic welding. With two 90 degree angles, and one 45 degree angle, you’ll always know that your welds will come out right. This is also equipped with a 300 amp ground clap to be an all in one tool!
This magnet has a holding force of 67 Kgs based on a 10mm mild steel plate.

Ask us about the MagSwitch Multi Angle by using our stock code MSMULTIANGLE300 to see what else it can do for you.

Uses for our MagSwitch Multi Angle 300:

This is the ultimate welding magnet allowing for the steel to be positioned accurately before being welded together, simply move the two magnets into the position that best allows for mounting, lock them in place and turn on the strong Neodymium Magnets by turning the knob on the top of the unit to lock the plates into place.
Because of the groove in the magnets, these can accurately and strongly hold both flat steel and round pipes making them an all in one tool.

Be able to weld at common precise angles being 45, 60, 90 and 120 degrees. Our small angles also allow access into the smallest places wit their low profiles.

By having a physical on/off system that does not require any power access the magnet can be safely engaged/disengaged the system can be used in remote areas with limited power access and required no cleaning for maintenance.
