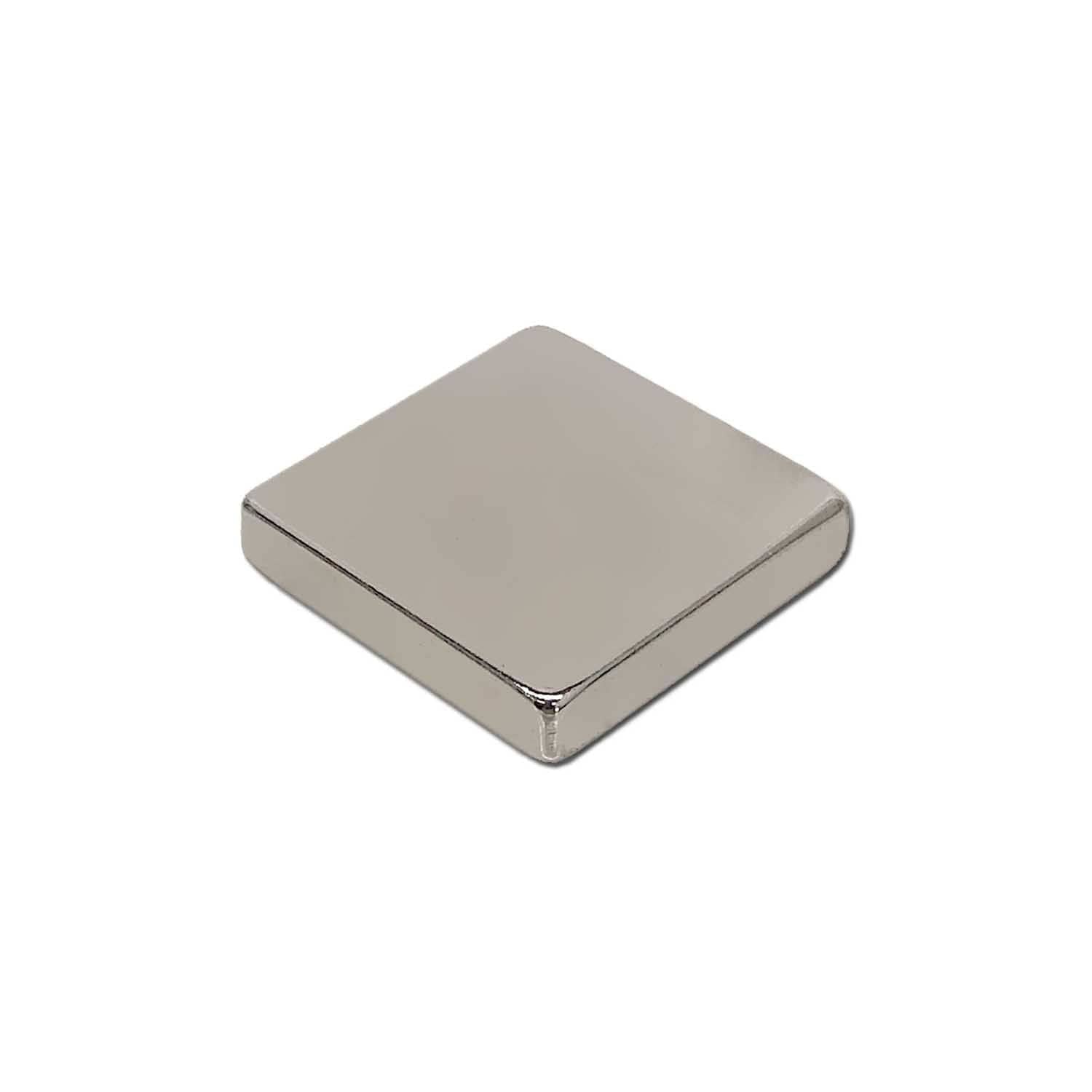

25mm x 25mm x 5mm Neodymium Block
Product Details
- Product Code: NB25255
- Max Breakaway Force: 12.22 Kgs
- Coating/Casing: Nickel
- Direction of Magnetism: Through Thickness
- Magnet Type: Neodymium
- Magnet Grade: N45
- Max Magnet Temperature: 80°C
Product Dimensions
- Length: 25 mm
- Width: 25 mm
- Thickness: 5 mm
$11.50
1-9 | 10-99 | 100+ |
$11.50 | $9.20 | $7.48 |
Our 25mm x 25mm x 5mm Neodymium Block has a length of 25mm, a width of 25mm and is 5mm thick. These rectangle magnets are Nickle plated for protection, are N45 grade and have their magnetism running through the thickness (axially magnetised).
This block magnet has a pull force of 12.22 kilograms before releasing. (on a 10mm mild steel plate)
Ask us about our 25mm x 25mm x 5mm Neodymium Block using our stock code NB25255 to see what else it can do for you.
Uses for our 25mm x 25mm x 5mm Neodymium Block:
Our Neodymium Block Magnets (Rare Earth Magnets) have a very high power to size ratio making them ideal for where size is limitation but where a strong magnet is needed.
They are Nickle plated (hence being refereed to as a silver magnet) to protect the raw magnet beneath, as such these square magnets or rectangular magnets are not suitable for outdoor environments as they are prone to rust over time. If you are after a magnet to be used in an outdoor or humid environment we recommend the use of our plastic encased magnets that can withstand such environments without rusting as they are fully sealed.
These neo magnets are often found in many everyday items such as in motors in cars and hand held drills, generators and even in small headphones to large stadium speakers to produce high quality sound.
- Download: Neodymium MSDS">Neodymium MSDS
*Guarantee Terms: Our 10 Year Guarantee covers magnetism of all Neodymium products when kept in good condition. Guarantee does not cover rust or damage caused by mishandling or improper care. Click here for a full list of terms and conditions
