CAPN48F
Neodymium-Pots-With-Rubber-Boot
poster image

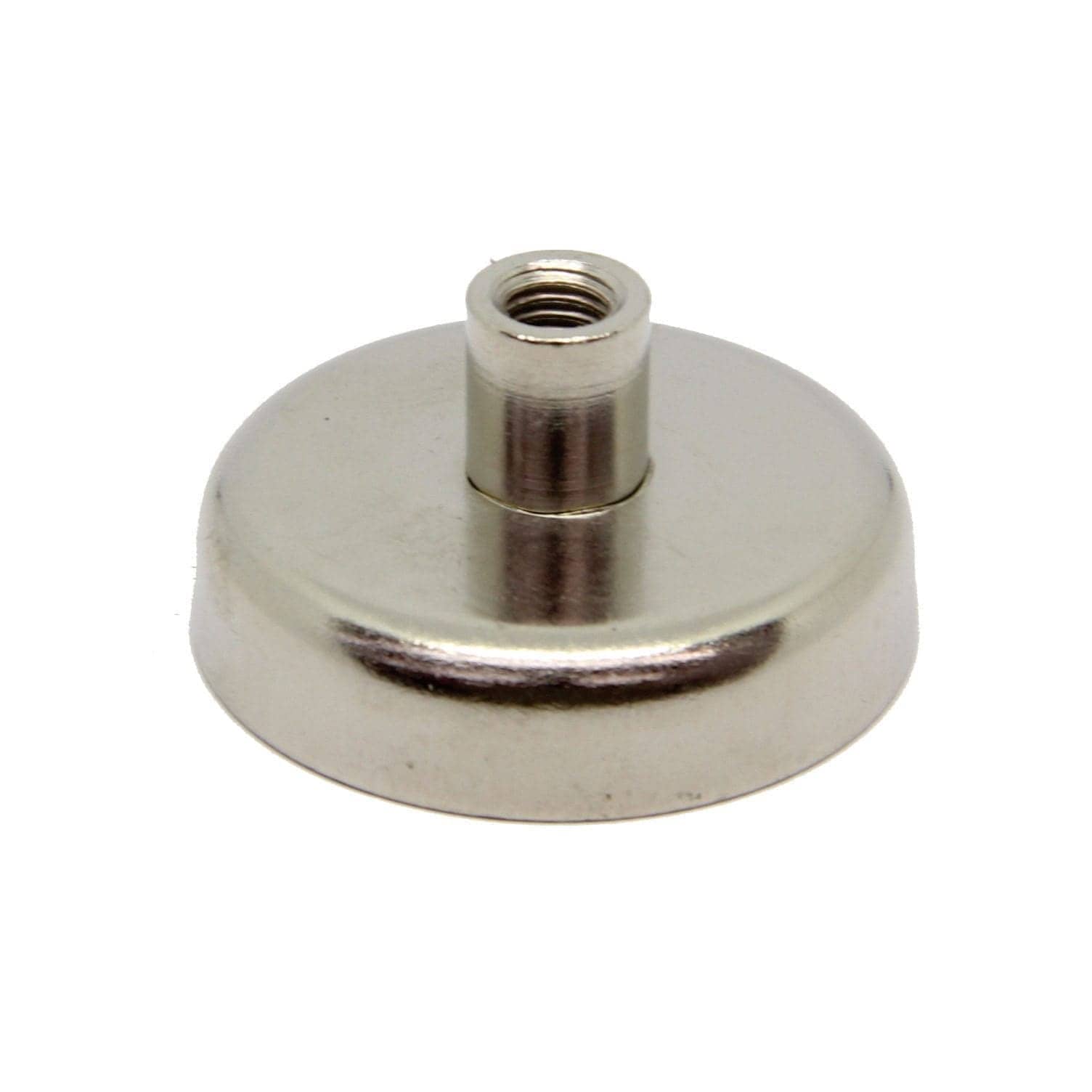

48mm x 11.5mm Neodymium Female Threaded Pot

Product Details

  • Product Code: CAPN48F
  • Max Breakaway Force: 81 Kgs
  • Coating/Casing: Nickel
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Neodymium
  • Magnet Grade: N45
  • Max Magnet Temperature: 80°C

Product Dimensions

  • Diametre: 48 mm
  • Thickness: 11.5 mm
  • Stud Thread: M8
  • Stud Length: 13 mm
Excl. GST Incl. GST

$26.62 Incl. GST

Quantity discounts
1-9 10-99 100+
$26.62 $21.30 $15.97

Our 48mm x 11.5mm Neodymium Female Threaded Pot has an outside diameter of 48mm, a thickness of 11.5mm and has a 12mm M8 threaded female stud. This holding magnet has a pull force of 81 kilograms before releasing. (on a 10mm mild steel plate)

Ask us about our 48mm x 11.5mm Neodymium Female Threaded Pot using our stock code CAPN48F to see what else it can do for you.

This Pot Magnet is also available with a; straight through hole, male threaded rod, steel hook or a stainless steel eyelet.

Uses for our 48mm x 11.5mm Neodymium Female Threaded Pot:

Attach to any surface magnetically and mount using the central hole to hang a wide range of items from signage displays to organising cables around the office or Christmas lights around the home. When the job is done simply remove or relocate them without causing any damage to the surface being attracted to.

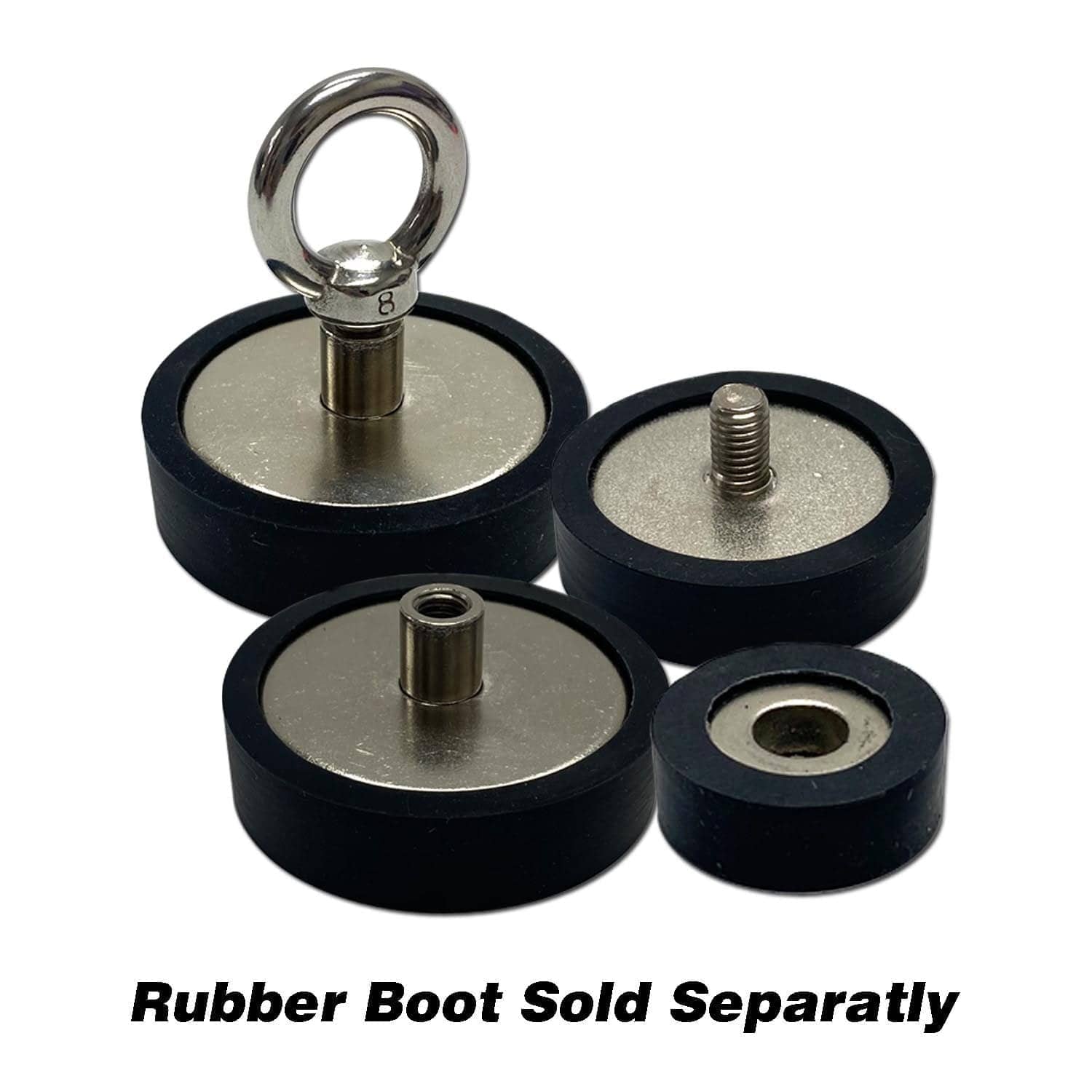

Unlike our blocks, disc or rings these pot magnets wont chip or break as easy as the steel channel acts to not only make a stronger single sided magnetic field, but also acts to protect the magnet from physical damage. If you are wanting to use these on a more sensitive surface such as on car paint we recommend using our rubber caps for added protection.
This will cause a reduction in magnetism by introducing an airgap between the magnet and the surface being attracted to so you may need a larger magnet or additional magnets to compensate for this reduction in pull force.

For a list of all our sizes, see the below table.

Outer Diametre Thickness Stud Thread | Depth Breakaway Force
10 mm 5 mm M3
7 mm		 2.2 Kgs
12 mm 5 mm M4
7.5 mm		 3.2 Kgs
16 mm 5 mm M4
7.5 mm		 5.5 Kgs
20 mm 6 mm M4
8 mm		 9 Kgs
25 mm 8 mm M5
10 mm		 22 Kgs
32 mm 8 mm M6
9 mm		 34 Kgs
36 mm 8 mm M6
9 mm		 41 Kgs
42 mm 9 mm M6
9 mm		 68 Kgs
48 mm 11.5 mm M8
13 mm		 81 Kgs
60 mm 15 mm M8
13 mm		 113 Kgs
75 mm 18 mm M10
20 mm		 164 Kgs
