CAPN20M
poster image

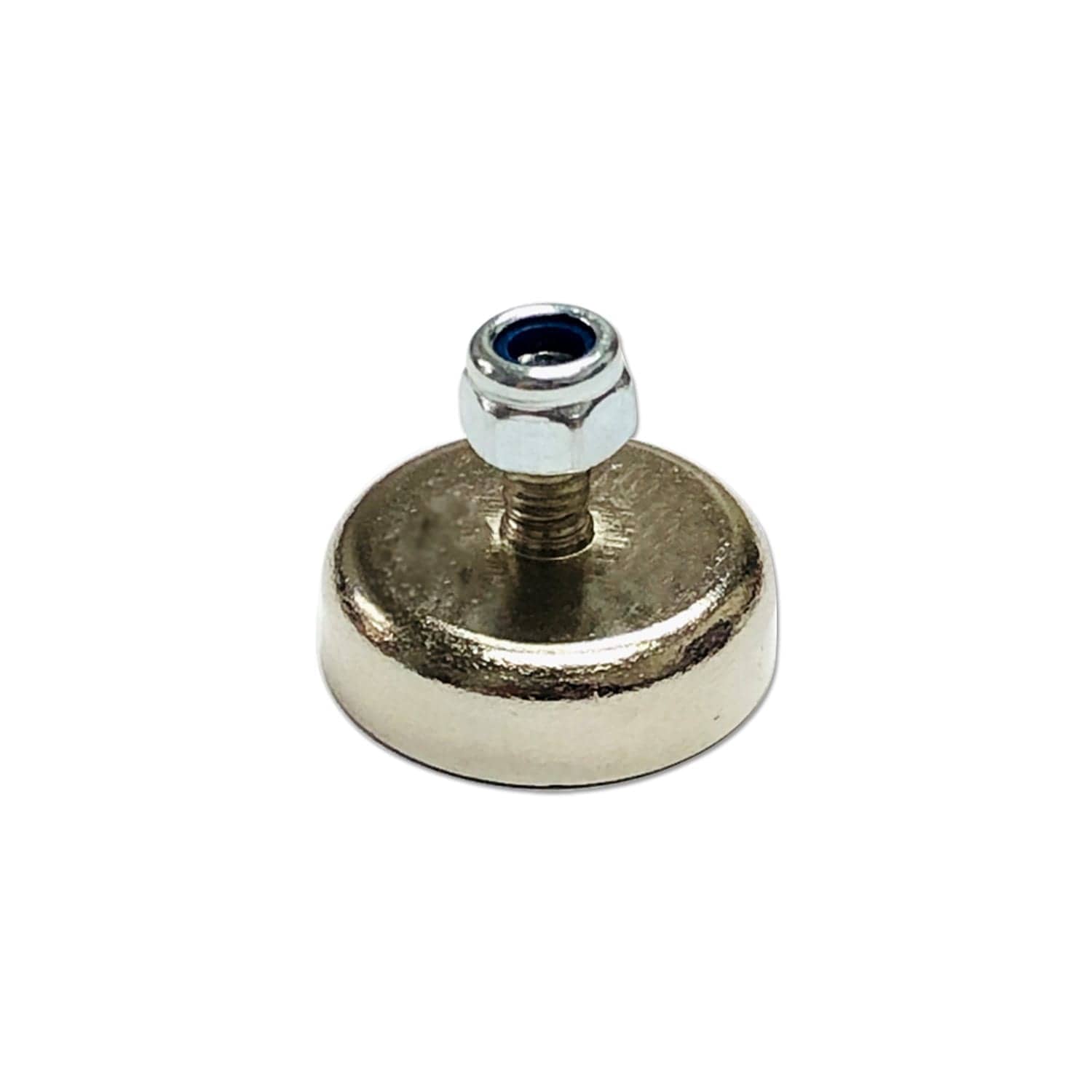

20mm x 6mm Neodymium Male Threaded Pot

Product Details

  • Product Code: CAPN20M
  • Max Breakaway Force: 9 Kgs
  • Coating/Casing: Nickel
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Neodymium
  • Magnet Grade: N45
  • Max Magnet Temperature: 80°C

Product Dimensions

  • diameter: 20 mm
  • Thickness: 6 mm
  • Rod Thread: M4
  • Rod Length: 8 mm

$3.87

Quantity discounts
1-9 10-99 100+
$3.87 $3.29 $2.71

Our 20mm x 6mm Neodymium Male Threaded Pot has an outside diameter of 20mm, a thickness of 6mm and has a 8mm M4 threaded rod. This holding magnet has a pull force of 9 kilograms before releasing. (on a 10mm mild steel plate)

Ask us about our 20mm x 6mm Neodymium Male Threaded Pot using our stock code CAPN20M to see what else it can do for you.

This Pot Magnet is also available with a; straight through hole or a female threaded rod.

Uses for our 20mm x 6mm Neodymium Male Threaded Pot:

Attach to any surface magnetically and mount using the central hole to hang a wide range of items from signage displays to organising cables around the office or Christmas lights around the home. When the job is done simply remove or relocate them without causing any damage to the surface being attracted to.

Unlike our blocks, disc or rings these pot magnets wont chip or break as easy as the steel channel acts to not only make a stronger single sided magnetic field, but also acts to protect the magnet from physical damage. If you are wanting to use these on a more sensitive surface such as on car paint we recommend using our rubber caps for added protection.
This will cause a reduction in magnetism by introducing an airgap between the magnet and the surface being attracted to so you may need a larger magnet or additional magnets to compensate for this reduction in pull force.

All of our male threaded pot magnets include a Loctite nut at no additional cost.

For a list of all our sizes, see the below table.

Outer Diameter Thickness Rod Thread | Length Breakaway Force
10 mm 5 mm M3
8 mm		 2.2 Kgs
12 mm 5 mm M4
8 mm		 3.2 Kgs
16 mm 5 mm M4
9 mm		 5.5 Kgs
20 mm 6 mm M4
8 mm		 9 Kgs
25 mm 8 mm M5
10 mm		 22 Kgs
32 mm 8 mm M6
11 mm		 34 Kgs
36 mm 8 mm M6
11 mm		 41 Kgs
42 mm 9 mm M8
12 mm		 68 Kgs
48 mm 11 mm M8
12 mm		 81 Kgs
60 mm 15 mm M8
20 mm		 113 Kgs
75 mm 18 mm M10
20 mm		 164 Kgs
