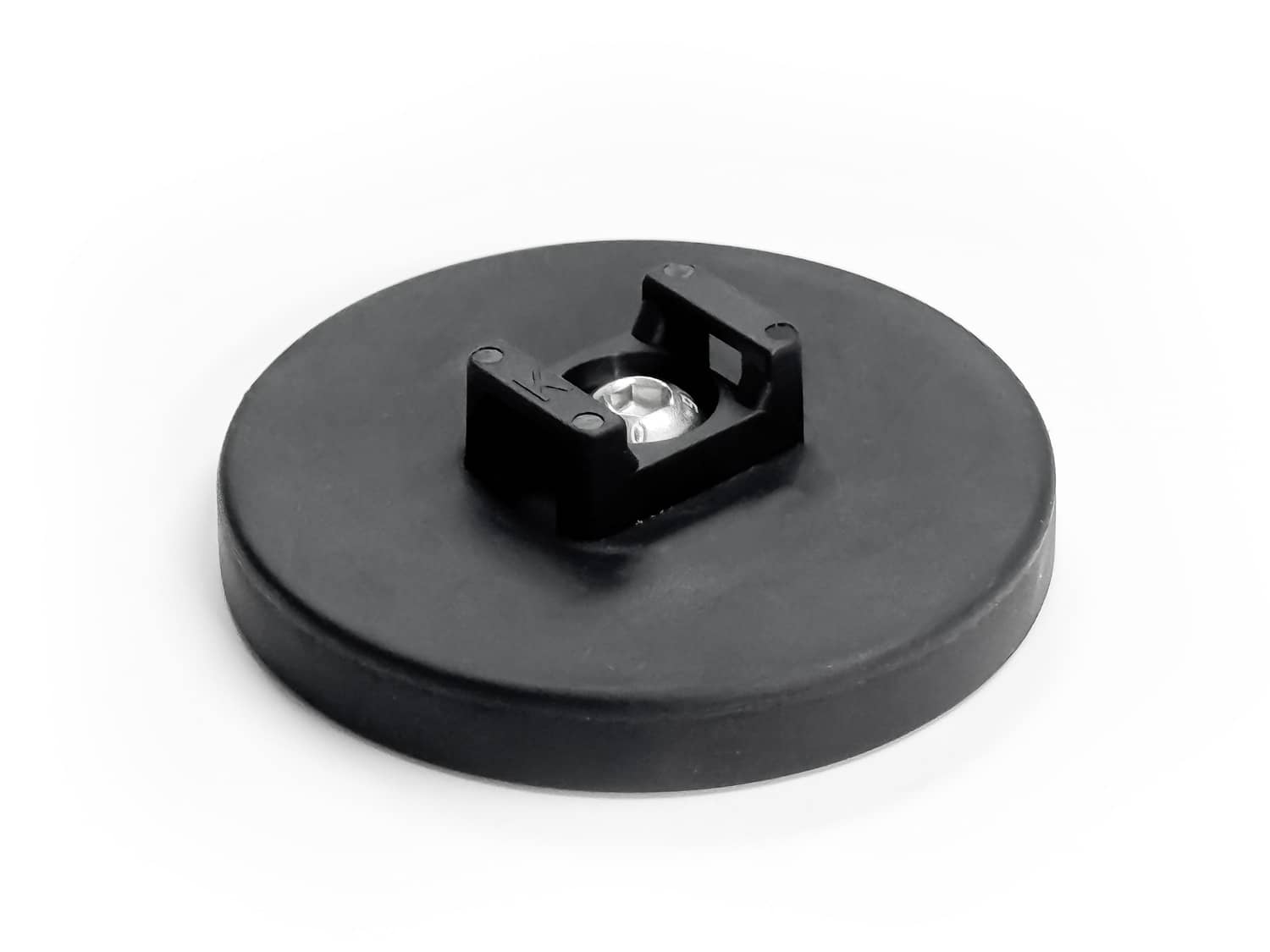

66mm Female Rubber Encased Holding Magnet with Cable Tie Attachment

Product Details

  • Product Code: RUBBERMAG66CT
  • Max Breakaway Force: 20 Kgs
  • Coating/Casing: Rubber
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Neodymium
  • Magnet Grade: N45
  • Max Magnet Temperature: 80°C

Product Dimensions

  • Diametre: 66 mm
  • Thickness: 8 mm
  • Hole Thread: M6
Excl. GST Incl. GST

$14.60 Incl. GST

Quantity discounts
1-9 10-99 100+
$14.60 $12.41 $11.68

Our 66mm Female Rubber Encased Holding Magnet has an outside diameter of 66mm, a thickness of 6mm and has a M6 threaded female hole. This holding magnet has a pull force of 20 kilograms before releasing. (on a 10mm mild steel plate) and has an epoxy rubber-like coating.

Ask us about our 66mm Female Rubber Encased Holding Magnet with Cable Tie Attachment using our stock code RUBBERMAG66CT to see what else it can do for you.

Uses for our 66mm Female Rubber Encased Holding Magnet with Cable Tie Attachment:

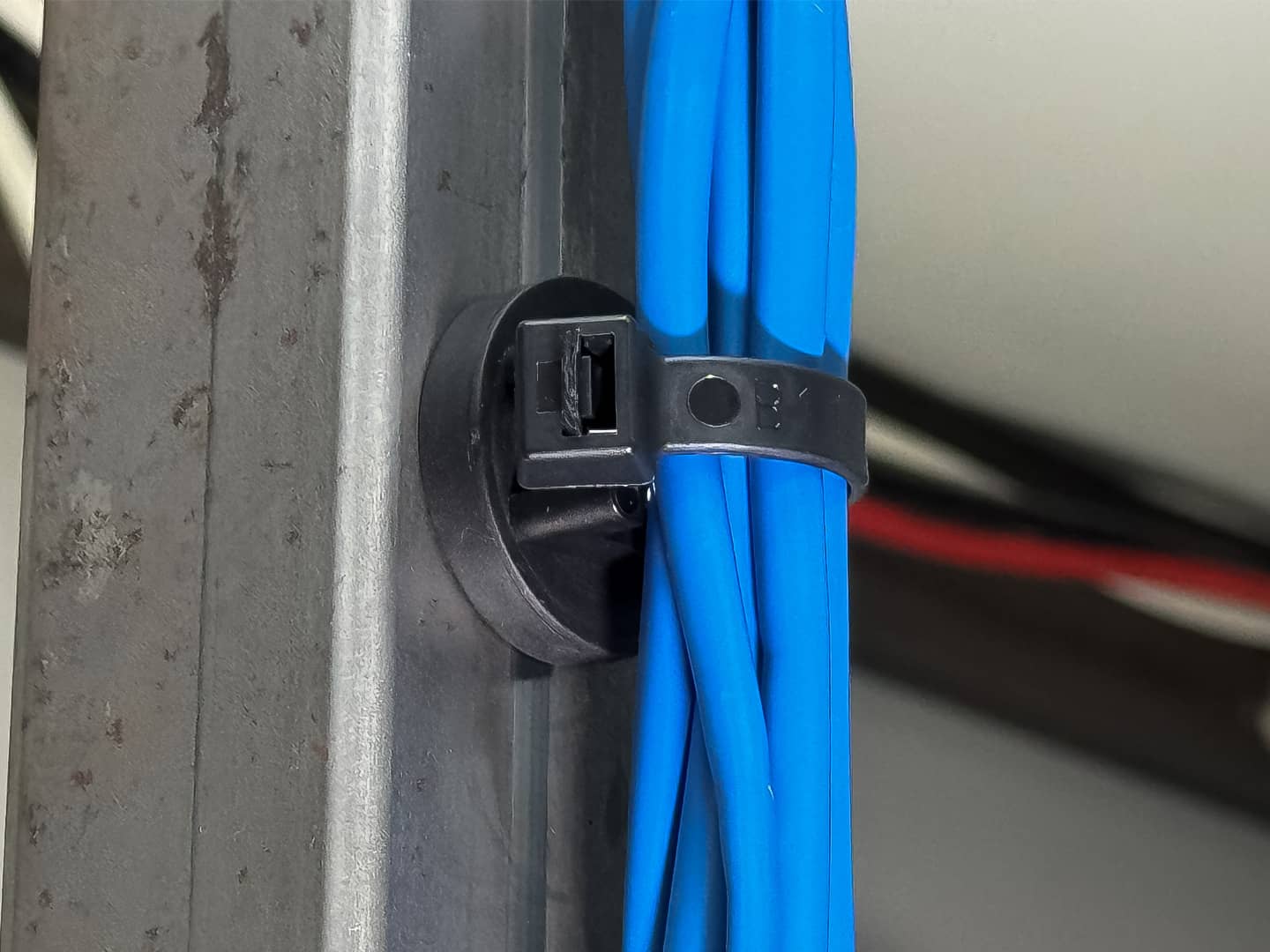

Attach to any surface magnetically and mount using the stud to hang a wide range of items from signage displays to organising cables around the office or Christmas lights around the home. When the job is done simply remove or relocate them without causing any damage to the surface being attracted to.

Use our pot magnets with a steel keeper to create gate, latch magnets and other closures with ease.

Unlike our blocks, disc or rings these pot magnets wont chip or break as easy as the rubber coating works to protect both the magnets inside. Being fully coated and sealed they are suitable for outdoor environments as they will not rust.
They are also more suitable for use on sensitive surfaces such as car panels due to the soft rubber coating that helps to avoid scratching the surface they are attracted to. Before applying to the surface, ensure it is clean as any dirt under the magnet can cause abrasion.

After a magnet suitable for sign-writers, designers or when architects, click here to view our rubber encased magnet with a handle for easy release.

Please see below for a full list of our rubber encased pot range.

Dimensions (Diametre and Thickness) Breakaway Force
Diametre: 22mm
Thickness: 6mm		 M4 Female Threaded Stud 5 Kgs
Diametre: 22mm
Thickness: 6mm		 M4 Threaded Hole 5 Kgs
Diametre: 22mm
Thickness: 6mm		 M4 Threaded Rod 5 Kgs
Diametre: 31mm
Thickness: 6mm		 M5 Threaded Hole 7 Kgs
Diametre: 31mm
Thickness: 6mm		 M5 Threaded Rod 7 Kgs
Diametre: 43mm
Thickness: 6mm		 M4 Female Threaded Stud (With Handle) 10 Kgs
Diametre: 43mm
Thickness: 6mm		 M5 Threaded Hole 10 Kgs
Diametre: 43mm
Thickness: 6mm		 M5 Threaded Rod 10 Kgs
Diametre: 66mm
Thickness: 6mm		 M6 Female Threaded Stud 20 Kgs
Diametre: 66mm
Thickness: 8mm		 M6 Threaded Hole 20 Kgs
Diametre: 66mm
Thickness: 8mm		 M8 Threaded Rod 20 Kgs
Diametre: 88mm
Thickness: 8.5mm		 M8 Threaded Rod 44 Kgs
