SB20105
poster image

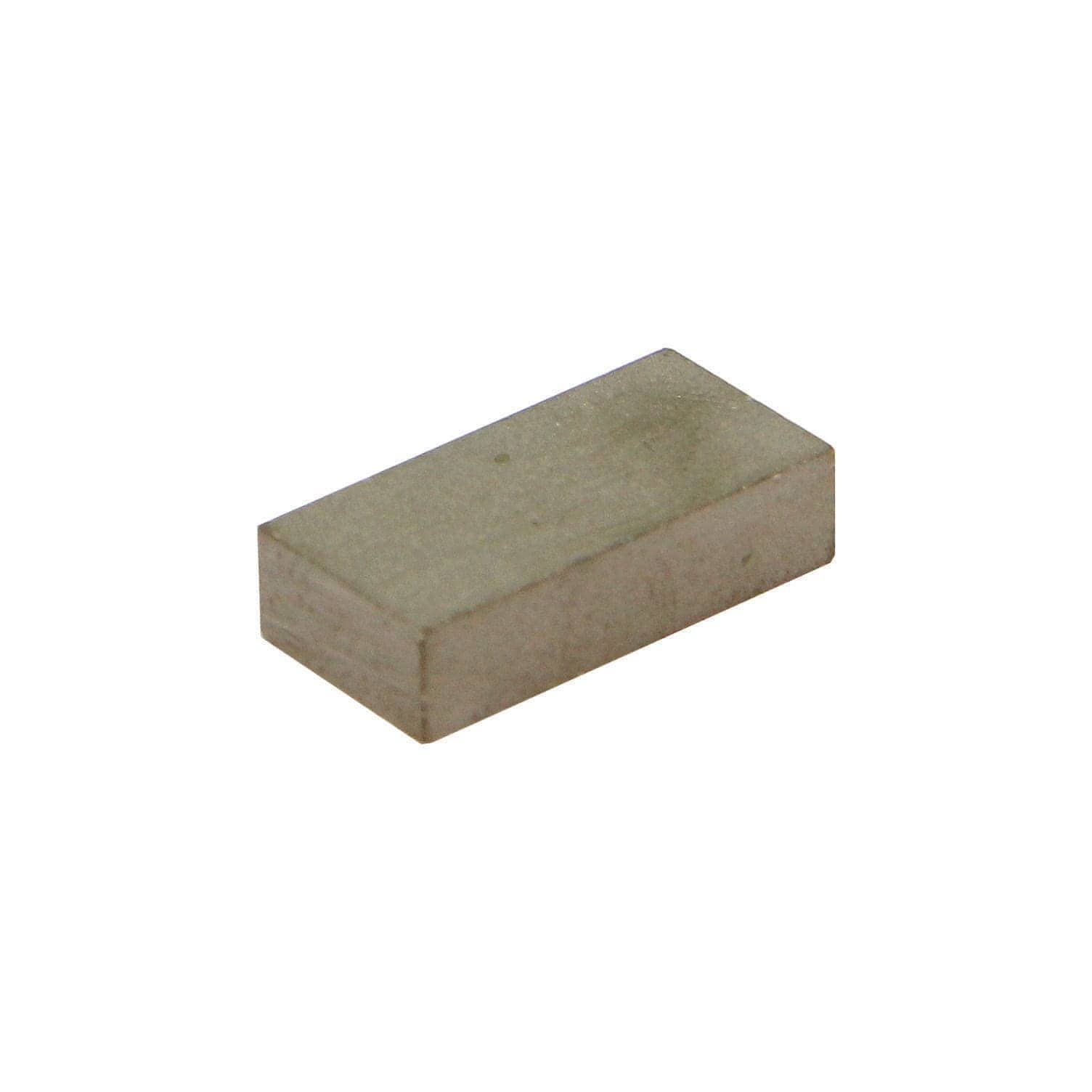

20mm x 10mm x 5mm Samarium Block

Product Details

  • Product Code: SB20105
  • Max Breakaway Force: 4.6 Kgs
  • Coating/Casing: Uncoated
  • Direction of Magnetism: Through Thickness
  • Magnet Type: Samarium
  • Magnet Grade: CMCO17
  • Max Magnet Temperature: 250°C

Product Dimensions

  • Length: 20 mm
  • Width: 10 mm
  • Thickness: 5 mm
Excl. GST Incl. GST

$6.41 Incl. GST

Quantity discounts
1-9 10-99 100+
$6.41 $5.45 $4.49

Our 20mm x 10mm x 5mm Samarium Block has a length of 20mm, a width of 10mm and is 5mm thick. These rectangular magnets are uncoated, are CMCO17 grade and have their magnetism running through the thickness (axially magnetised).
This rectangle magnet has a pull force of 4.6 kilograms before releasing. (on a 10mm mild steel plate)

Ask us about our 20mm x 10mm x 5mm Samarium Block using our stock code SB20105 to see what else it can do for you.

Uses for our 20mm x 10mm x 5mm Samarium Block:

Samarium magnets have a high corrosion resistance and a high temperature tolerance. Because of this they do not need a protective coating, hence why they are uncoated.

These magnets are most used in engineering projects where the magnets are under high heat condition or in humid environments as these will not rust such as in magnetic separation equipment in plastics industries. Small electric motors and actuators also utalise these magnets due to their strong magnetic properties.
High performance equipment such as sensors and gauges use these as an alterative to Neodymium magnet that would either rust or demagneise under heated conditions.
